AE035HDS-N41 3.5 Inch Wide Temperature TFT LCD Display Overview

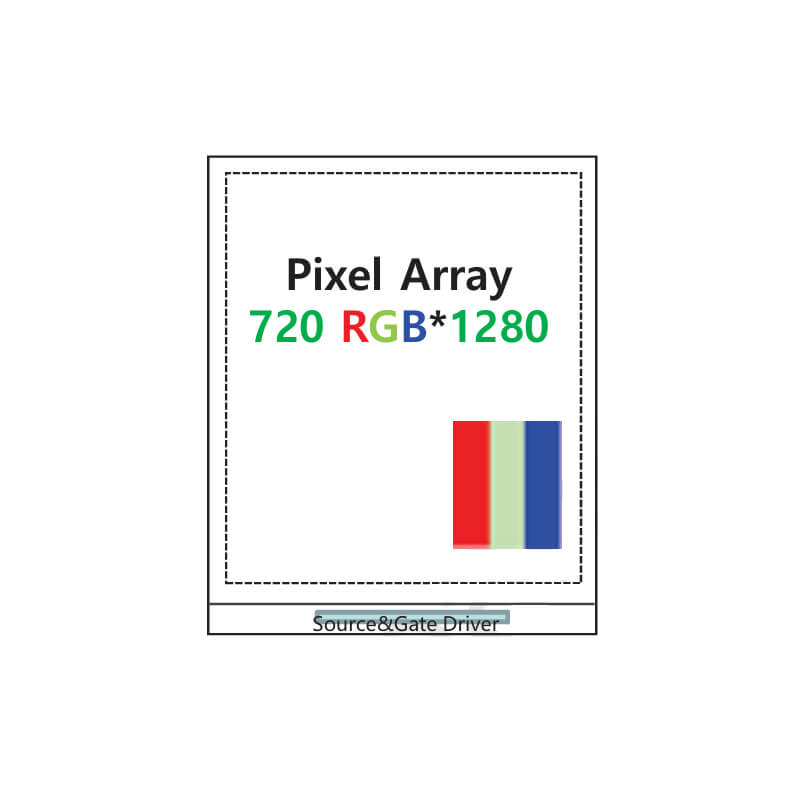

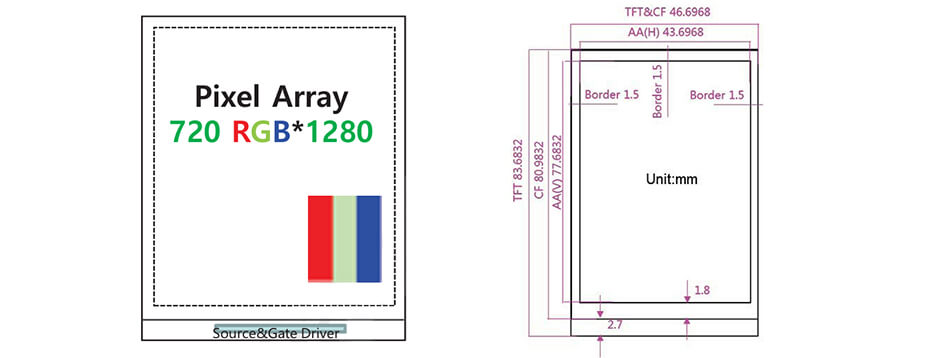

AE035HDS-N41 is a 3.5 inch diagonal Oxide TFT-LCD display screen product, without backlight, without touch screen. AE035HDS-N41 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 418 PPI. As for mechanical detail, it features active area of 43.6969(W)×77.6832(H) mm, outline size of 46.7(W)×83.68(H)×0.4(D) mm, with surface treament of Without Polarizer, net weight of TBD, utilizing 0.20+0.20 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, AE035HDS-N41 can provides 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC).
