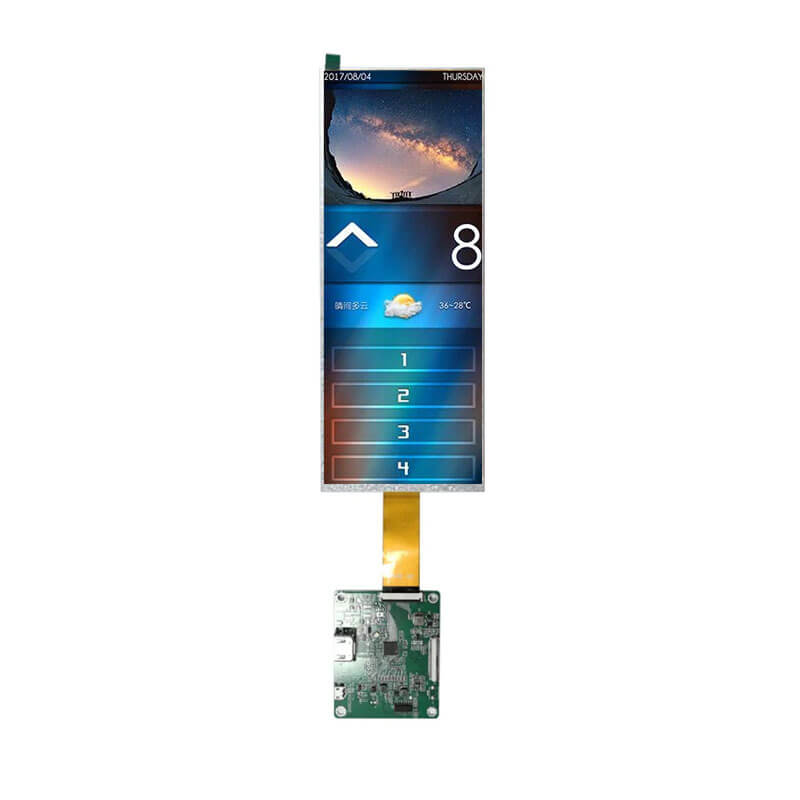

9.3 Inch TFT LCD Display 600x1600 MIPI HDMI IPS LCD Display With HDMI Driver Board

9.3 Inch 600x1600 Display Overview
9.3 Inch TFT LCD Display 600x1600 MIPI HDMI IPS LCD Display With HDMI Driver Board.

9.3 Inch 600x1600 Display Features
Model：ET093BA01-V-HDMI
1) 9.3 Inch HDMI Bar TFT Display with 600×1600 Hardware Resolution.
2) With Capacitive Touch Screen, Support 5-point model control, USB touch, free drive.

Board: HDMI1.4 to Dual-port MIPI DSI/CSI/LVDS with Audio
1) HDMI1.4 Receiver
2) Single/Dual-Port MIPI DSI/CSI Transmitter
3) Single/Dual-Port LVDS Transmitter

Display: 9.3 Inch 600×1600 Bar IPS TFT
1) Interface Mode: MIPI
2) Driver IC: FL7707N ST7703
3) Display mode: Normally Black
4) Brightness: 500 cd/m2
4) Operation Temperature: -20-70℃

Display Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Display Applications
