7.1"-10.1" LCD Display (9.3")

9.3 Inch High Brightness Display 750nits IPS 600x1600 MIPI TFT LCD Display

Part No.:ET093HD01-GX
Size:9.3″ inch
Resolution:600x1600
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:89x231mm
Active Area:82.944x221.184mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:750(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

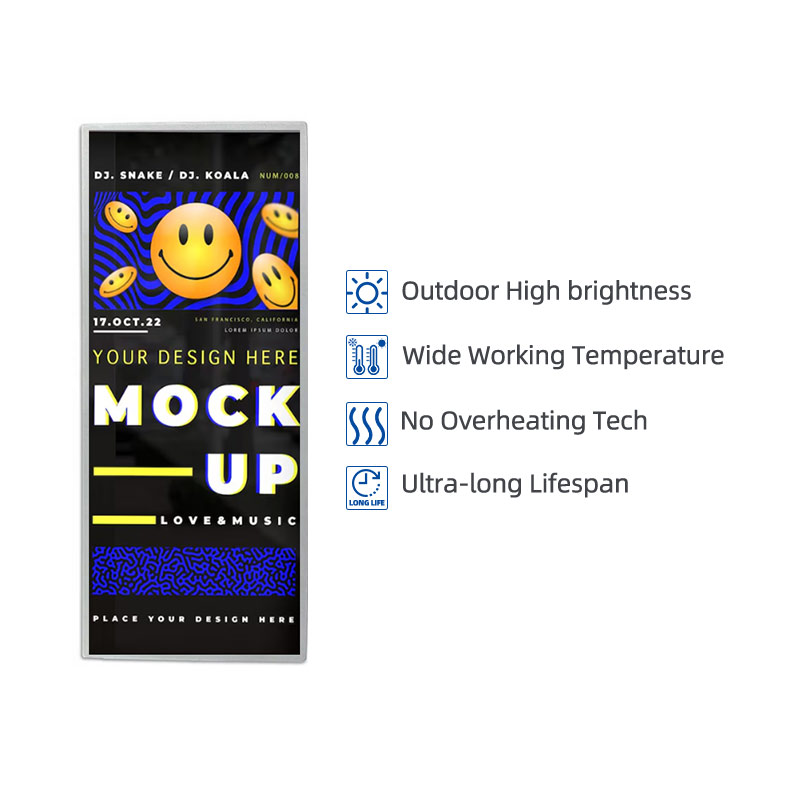

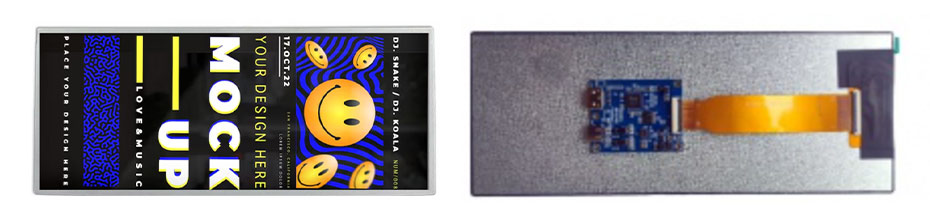

9.3 Inch High Brightness LCD Display Overview
ET093HD01-GX is a 9.3-inch high-brightness TFT LCD display with IPS technology. It features a 600 × 1600 resolution in a transmissive display mode and supports a MIPI interface. The display delivers a typical brightness of 750 cd/m² and wide viewing angles of 85° in all directions. It has an active area of 82.944 × 221.184 mm within an outline dimension of 89 × 231 mm. Designed for industrial reliability, it operates in temperatures from −20 to 70 °C (storage −30 to 80 °C) and does not include touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
