9.2 inch Stretched Bar Display Wide Temperature 1920x480 Bar LCD Display

Part No.:TM092XDHG01
Size:9.2″ inch
Resolution:1920x480
Panel Interface:LVDS (2 ch,8-bit)
Display mode:TN,Transmissive
Outline Dimension:237(H)x72.3(V)
Active Area:226.944(H)x56.736(V)
Viewing Angle L/R/U/D:80/80/70/60
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-30~85°C / -40~95°C
Touch:no

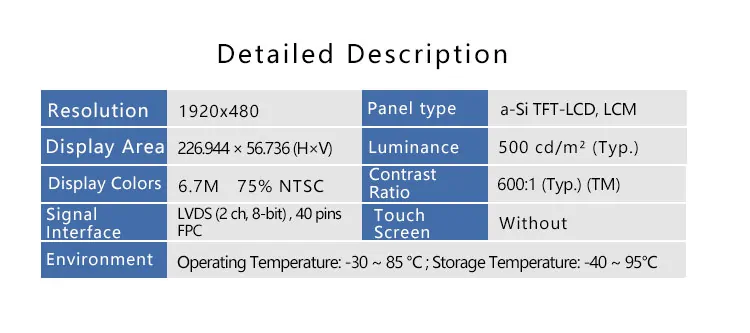

Products Description

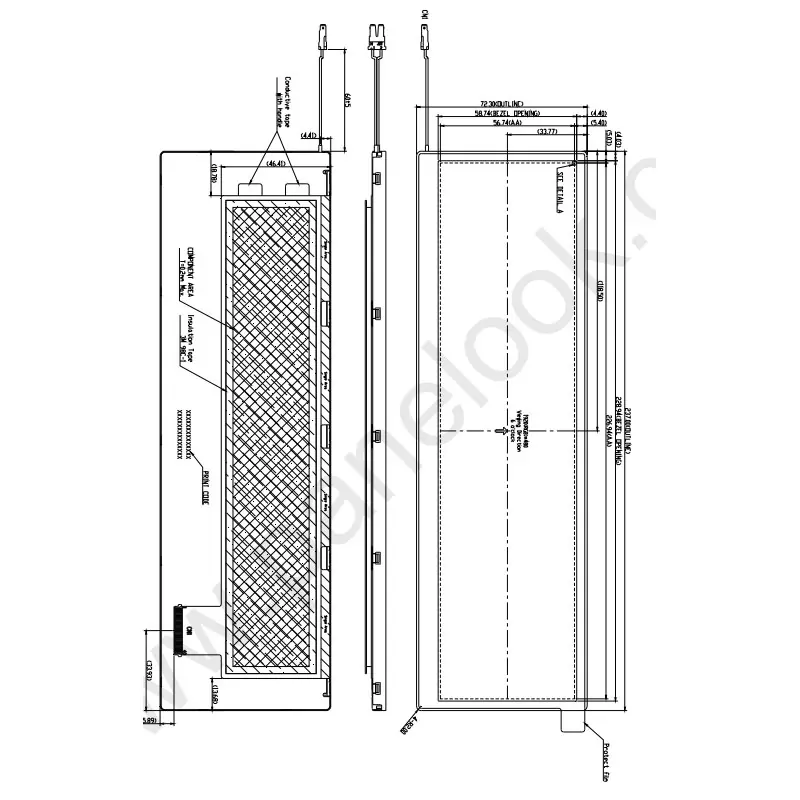

TM092XDHG01-9.2inch-TFT-1920x480-LVDS-1

TM092XDHG01_02
