9.2 Inch Stretched Bar Display 1280x320 IPS LVDS 3500nits High Brightness Wide Temperature TFT LCD Display

9.2 Inch Stretched Bar Display Overview

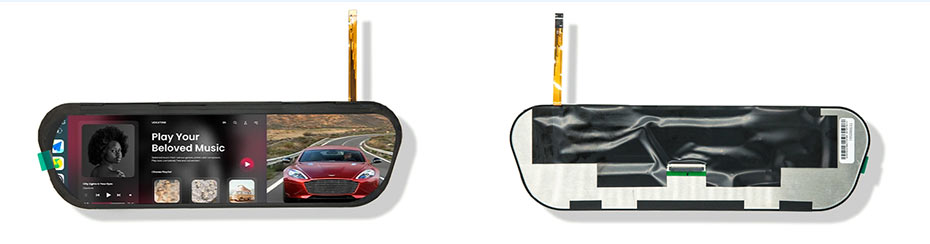

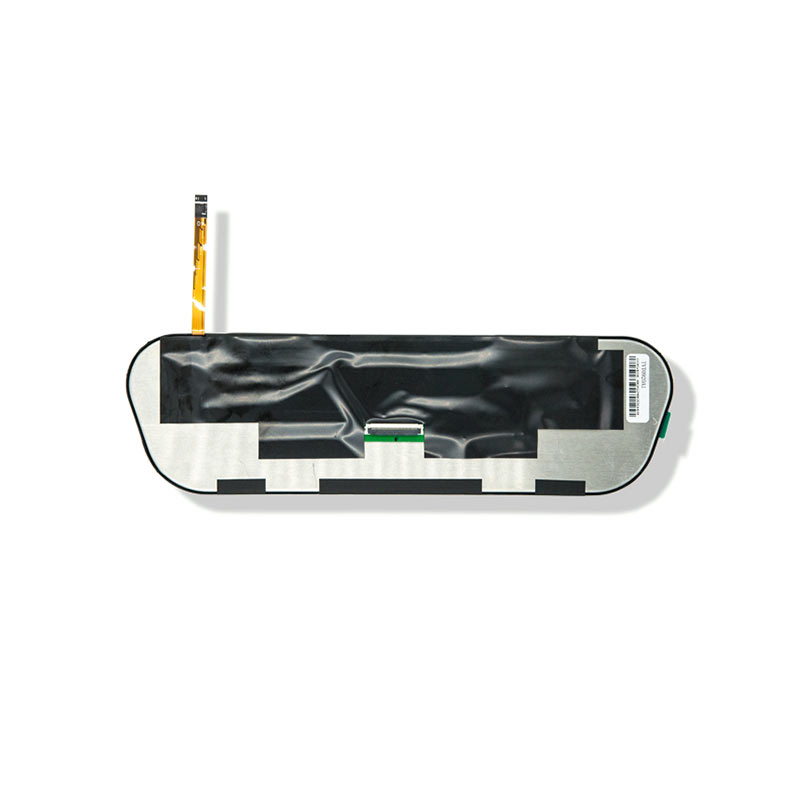

ET092BA01-TV is a 9.2-inch diagonal stretched bar TFT-LCD display product with a transmissive IPS panel. It supports a 1280 × 320 resolution, delivering a wide-aspect bar-type display format with wide viewing angles of 85° in all directions (L/R/U/D). ET092BA01-TV features an active area of 226.56 × 56.64 mm and an outline dimension of 238.63 × 69.5 mm, making it suitable for slim and elongated industrial designs. The display uses an LVDS interface and provides a high brightness of 3500 cd/m² (typ.), ensuring excellent visibility in high-ambient-light environments. It is designed for reliable operation over a wide temperature range of –20 to 70°C, with a storage temperature range of –30 to 80°C. This model does not support touch functionality and is well suited for applications such as industrial HMIs, transportation displays, and outdoor information panels.

More 9.2 Inch Bar Displays For Reference

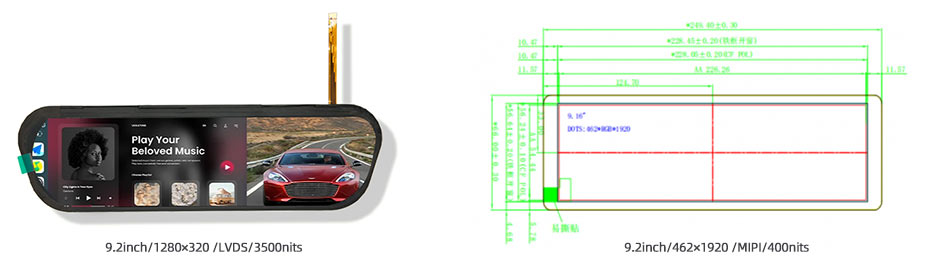

ET092BA01-TV (1280x320, LVDS, IPS, 3500nits, -30~80°C, 238.63x69.5mm)
ET092BA01-GL (462x1920 , MIPI, IPS, 400nits, -20~60°C,66x249.4mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
