8 Inch USB Extended Type-C Display 800x1280 Serial TFT Display With Capacitive Touch/Resistive Touch

8 Inch Serial Port Screen Overview
8 Inch USB Extended Type-C Display 800x1280 Serial TFT Display With Capacitive Touch/Resistive Touch.

8 Inch Serial Port Screen Product Parameters
Core processor frequency: 600MHz
Supported PC operating systems: Windows 10, Windows 11
Size: 8.0 inches
Resolution:800x1280
Installation direction: supports 0, 90, 180 and 270 degree rotation installation display
Storage space: 128Mbit
Color: 16M colors, 24-bit RGB true color
Voltage:5V

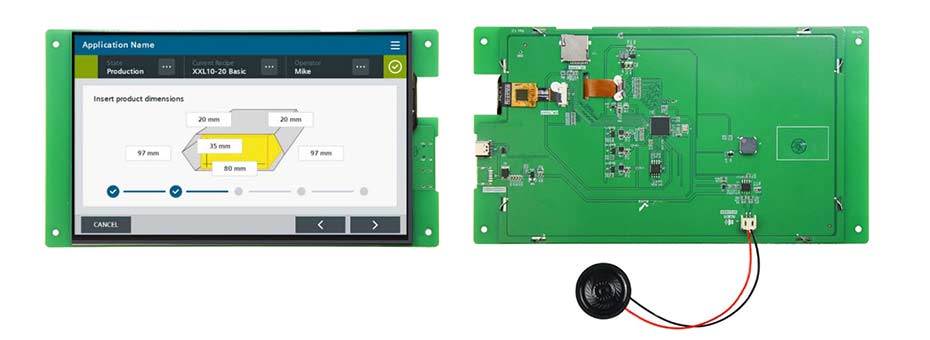

Audio output: Connector specifications: PH2.0-2P
Supports driving 2W 4Ω speakers (mono)
Power consumption
Without speaker: 2.3W
With speaker: 3.5W
Firmware local/remote upgrade: Type-C connection to computer for local upgrade

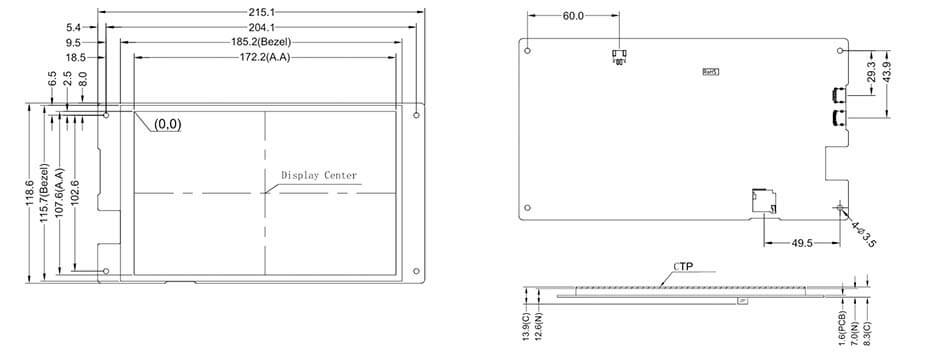

Screen effective display area: 172.2mmx107.6mm
Product size: 215.1mmx118.6mmx13.9mm

Reliability parameters
Operating Temperature: 20~+70°C
Storage Temperature: 30~+80°C
ESD testing:Test standard: IEC 61000-4-2 Contact: ±4KV; Air: ±15KV
EFT test:Test standard: IEC 61000-4-4 national standard (voltage: ±4KV; frequency: 100/5KHZ; time: 120S), no restart, no display abnormality, no touch abnormality and other phenomena, the test function is normal.

Core competitiveness of products
Type-C direct connection: Say goodbye to complicated wiring
Dual-screen simultaneous display: five-point touch for more convenient control
Dual screens with different displays: entertainment and office work
Chassis secondary screen: real-time monitoring of system status at a glance
Life cycle: using big brand processors, no shortage of products for many years

8 Inch Serial Port Screen
Display Type: IPS LCD
Backlight: LED
Brightness (cd/m²): 270
Backlight Lifespan (hours): >20,000
Contrast Ratio: 700:1
Viewing Angles (L/R/T): 85/85/85/85

Touch panel (Resistive and capacitive touch optional)
Touch type: capacitive touch screen (IC: GT911)
Capacitive screen touch methods: five-point touch, sliding touch, gesture touch.
Capacitive screen transmittance: more than 90%
Number of touches on the capacitive screen: The number of touches on the capacitive screen is theoretically unlimited, and the touch life is related to the working environment (dust, humidity).
Capacitive cover customization: The "glass cover + capacitive touch" integrated fitting service can be customized according to the user's drawing size.

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.
