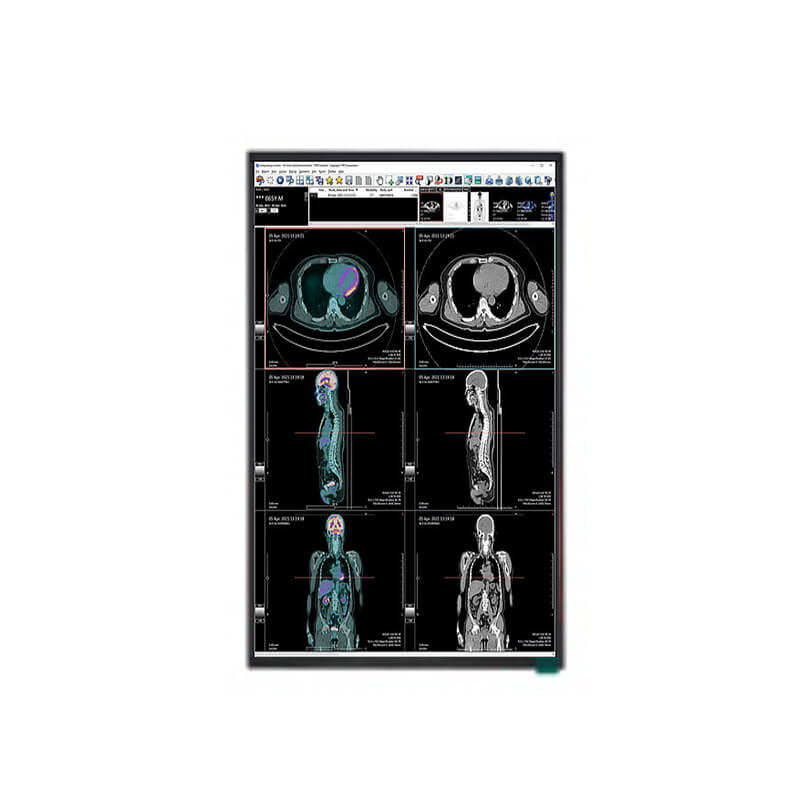

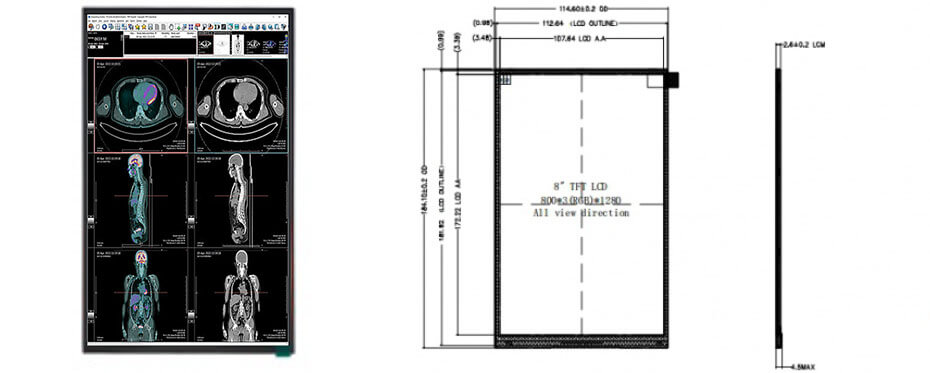

ET080WX02-YS is an 8 inch diagonal TFT LCD display module featuring an 800×1280 resolution with an aspect ratio of 5:8 (W). ET080WX02-YS adopts a transmissive display mode and supports an LVDS interface. It features an active area of 107.64(W)×172.22(H) mm and an outline dimension of 114.66(W)×184.16(H) mm. ET080WX02-YS provides 350 cd/m² typical display brightness and a viewing angle of L/R/U/D 80/80/80/80 degrees. It supports an operating temperature range of -20~60°C and a storage temperature range of -20~60°C, making it suitable for healthcare, medical equipment, industrial control, and other display applications. This model does not include a touch panel.

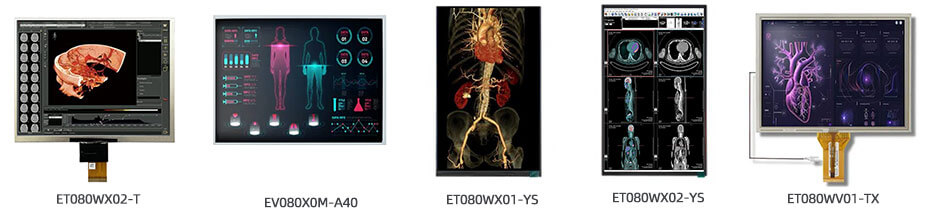

More 8 Inch Healthcare & Medical Display Solution For Reference
ET080WX02-T (LCM, 1024×768, LVDS, -20~70°C, 174×136mm)
EV080X0M-A40 (LCM, 768×1024, LVDS, -10~60°C, 158.2×192mm)
ET080WX01-YS (LCM, 800×1280, MIPI, -20~60°C, 114.66×184.16mm)
ET080WX02-YS (LCM, 800×1280, LVDS, -20~60°C, 114.66×184.16mm)
ET080WV01-TX (LCM, 800×600, TTL, -20~70°C, 183×141mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
