8 Inch 1920x1200 Display Overview

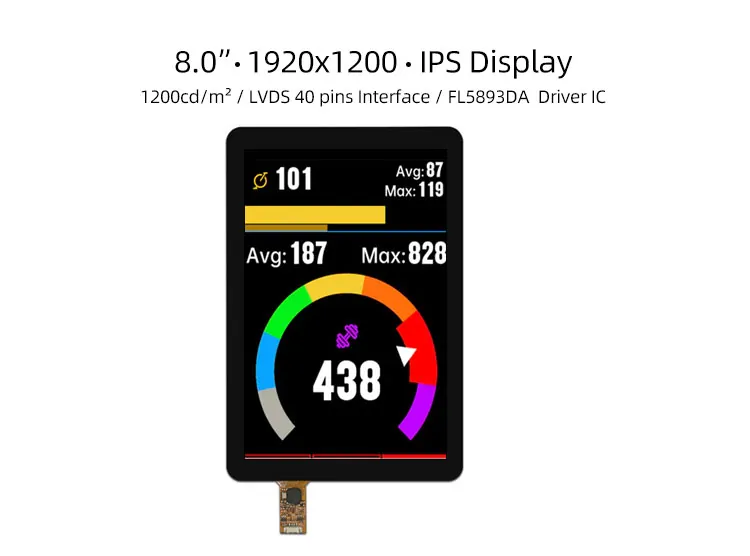

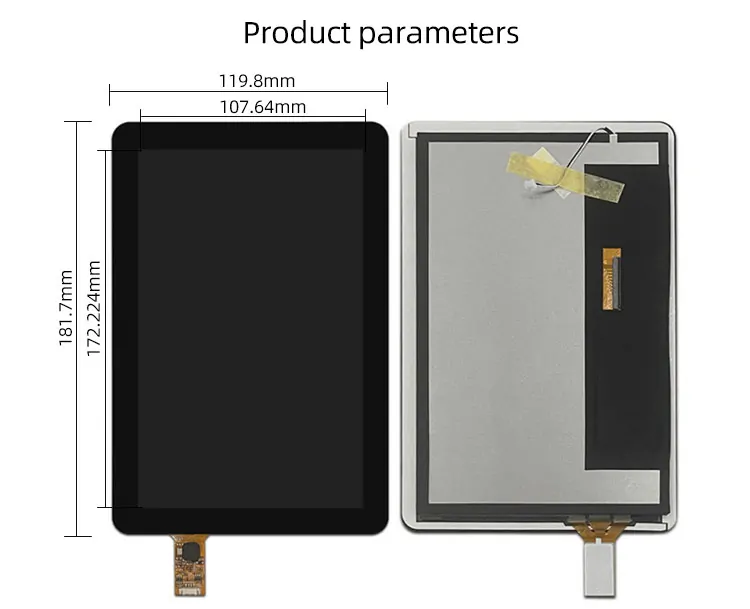

ET080WU10-TT is an 8-inch TFT LCD display module featuring a high resolution of 1920x1200 (WUXGA) with an LVDS panel interface. This IPS LCD module offers a high brightness of 1200 nits and has an active display area measuring 172.22 mm (W) x 107.64 mm (H). It does not include touch functionality. The part number for this display is ET080WU10-TT, and while specific details such as outline dimensions, viewing angles (L/R/U/D), and operation/storage temperatures are not provided, it stands out for its high brightness and clear resolution, making it suitable for applications requiring vivid and sharp visuals.
Medium Size Display List For Reference
| Inch | Resolution | LCM Driver chip |
LCM Dimensions | Display area | LCD interface | Reference brightness | CTP/RTP |
| 5 | 800x480 | ST7262 | 120.7x75.9x2.95 | 108x64.8 | RGB 24 BIT | 600 | CTP |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | RGB 24 BIT | 400 | / | |
| 800x480 | ST7262 | 120.7x75.9x3.0 | 108x64.8 | RGB 24 BIT | 1500 | / | |
| 720x1280 | ST7703 | 65.3x119.28x1.64 | 62.1x110.4 | MIPI 4 LANE | 350 | CTP | |
| 480x854 | ST7701S | 65.3x119.3x2.05 | 61.56x109.53 | MIPI 2 LANE | 350 | / | |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | MIPI 2 LANE | 1000 | / | |
| 720x1280 | NV3051FL | 65.4x119.3x1.59 | 61.56x109.53 | LVDS | 400 | / | |
| 1080x1920 | HX8399C | 64.76x118.7x1.5 | 61.88x110.02 | MIPI 4 LANE | 800 | / | |
| 720x1280 | NV3052C | 65.4x119.3x1.99 | 61.56x109.53 | RGB 24 BIT | 300 | / | |
| 5.2 | 1080x1920 | HX8399C | 67x122.6x1.7 | 64.8x115.2 | MIPI 4 LANE | 1200 | CTP |
| 5.5 | 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 1200 | CTP |
| 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 500 | CTP | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 300 | / | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 1000 | / | |
| 6 | 720x1280 | RM68200 | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 500 | / |
| 720x1280 | ILI9881C | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 450 | CTP | |
| 1080x1920 | FT8275 | / | 74.52x132.48 | MIPI | 400 | / | |
| 7 | 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB 24 BIT | 800 | / |
| 720x1280 | ILI9881C | 91.44x165.91x2.35 | 86.94x154.56 | MIPI 4 LANE | 350 | / | |
| 1024x600 | HX8282A11 | 164.9x100x3.5 | 154.08x85.92 | LVDS 8 BIT | 1300 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 550 | / | |
| 600x1024 | JD9365DA | 94.85x163.14x2.73 | 89.28x184.8 | MIPI 4 LANE | 350 | CTP | |
| 600x1024 | JD9365DA | 94.85x161.29x2.53 | 89.28x184.8 | MIPI 2 LANE | 800 | CTP | |
| 800x480 | HX8264-E | 164.9x100x5.5 | 154.08x85.92 | TTL | 450 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 1100 | CTP | |
| 1024x600 | EK79007AD2 | 164.9x100x3.45 | 154.08x85.92 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB | 1000 | CG | |
| 1200x1920 | HX8279 | 105.18x163.34x3.65 | 94.5x151.2 | MIPI 4 LANE | 1600 | / | |
| 8 | 1024x768 | / | 183x141x5.5 | 162.5x121.54 | LVDS | 1000 | / |
| 800x1280 | JD9365DA | 114.66x184.24x2.41 | 107.64x172.22 | MIPI 4 LANE | 450 | CTP | |
| 800x1280 | NV3052C | 114.66x184.24x2.41 | 107.64x172.22 | LVDS | 350 | CTP | |
| 1024x600 | HX8282 | 192.8x116.9x6.45 | 176.64x99.36 | LVDS | 450 | / | |
| 1024x768 | / | 174x136x2.5 | 162.5x121.54 | LVDS | 300 | / | |
| 1200x1920 | / | / | 176.64x99.36 | MIPI | / | / | |
| 1920x1200 | / | / | 172.22x107.64 | LVDS | / | / | |
| 9 | 1024x600 | HX8282A11 | 210.7x126.5x5 | 196.61x114.15 | LVDS 8 BIT | 450 | / |
| 9.7 | 1024x768 | / | 210.21x164.25x2.85 | 196.6x147.46 | LVDS | 1000 | / |
| 10.1 | 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 350 | / |
| 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 235x143x4.5 | 222.72x125.28 | LVDS | 450 | / | |
| 1200x1920 | HX8279 | 143x228.6x2.56 | 135.36x216.58 | MIPI 4 LANE | 300 | / | |
| 1280x800 | EK79202 | 229.46x149.1x2.6 | 216.96x135.6 | LVDS | 350 | / | |
| 1280x800 | EK79202 | 229.46x149.1x4.4 | 216.96x135.6 | LVDS | 1000 | / | |
| 800x1280 | NV3051F1 | 143x228.6x2.8 | 135.36x216.58 | LVDS 8 BIT | 400 | CTP | |
| 1920x1200 | / | 229.25x149.8x4.25 | / | LVDS | 1000 | / | |
| 1024x600 | / | 235x143x4.5 | / | RGB | 700 | / | |
| Touch Screens are Available and Optional | |||||||
8 Inch 1920x1200 Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
8 Inch 1920x1200 Display Touch screen,standard type and customization
8 Inch 1920x1200 Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
8 Inch 1920x1200 Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
