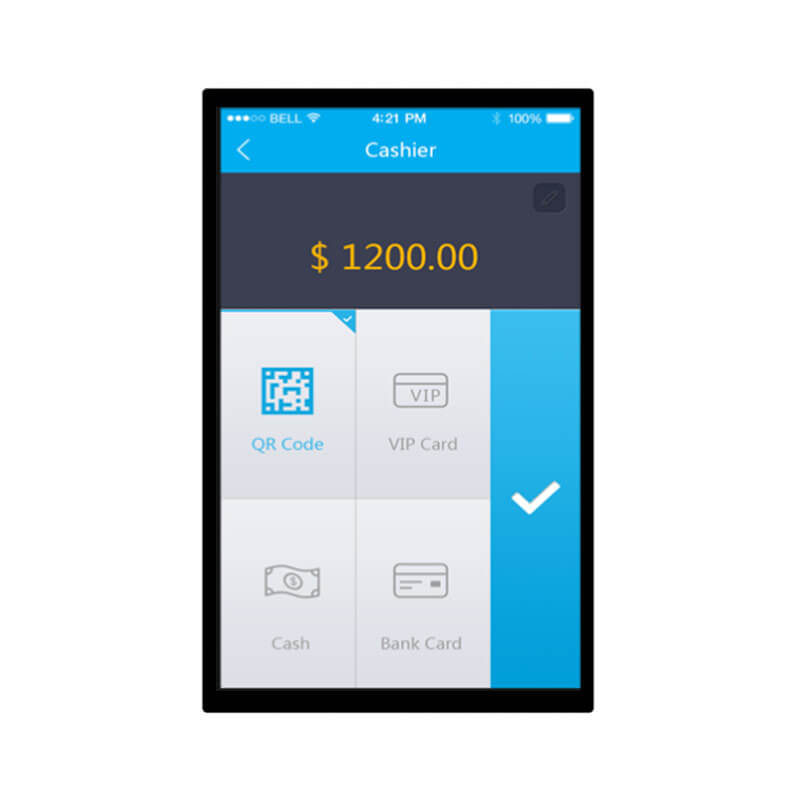

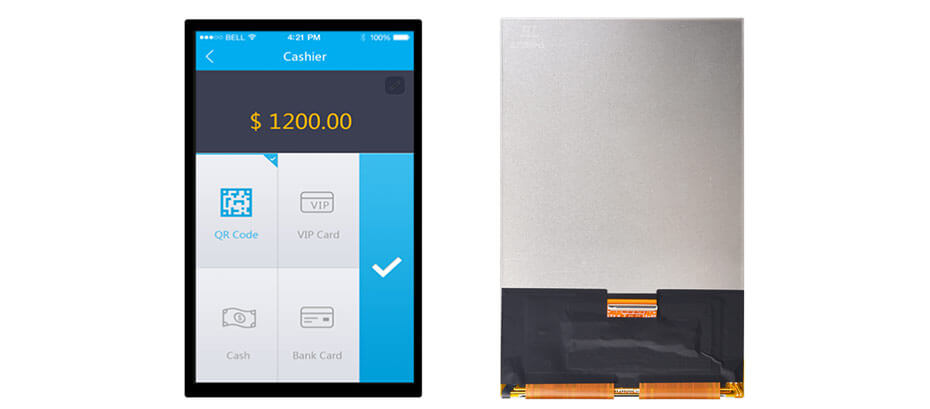

ET070WU01-HLT is a 7.0-inch TFT LCD display module featuring 1200×1920 resolution with a high pixel density for sharp and vivid image performance. It adopts a MIPI interface for high-speed signal transmission and supports In-Cell touch technology, enabling a slimmer structure and more responsive touch interaction. With a transmissive display mode, the module delivers an impressive 2000 cd/m² high brightness, ensuring excellent readability even under strong ambient light. It features an active area of 94.5(W) × 151.2(H) mm and an outline dimension of 105.46(W) × 162.82(H) mm, making it suitable for compact and high-end display applications. The display provides a wide viewing angle of 80/80/80/80 (L/R/U/D) for consistent visual performance from all directions. Designed for industrial-grade reliability, ET070WU01-HLT supports an operating temperature range of -20°C to 70°C and storage temperatures from -30°C to 80°C, making it ideal for outdoor, automotive, medical, and smart device applications.
More 7 Inch Display With In-Cell Touch For Reference
ET070WU01-TT (LCD, 1200×1920, MIPI, 350nits, -20~70°C, 115×176mm,In-Cell)
ET070WU01-HLT (LCD, 1200×1920, MIPI, 2000nits, -20~70°C, 105.46×162.82mm,In-Cell)
TL070FVXS11-00 (LCD, 1080×1920, MIPI, 450nits, -20~70°C, 99.556×171.94mm,In-Cell)
ET070FH01-RT (LCD, 1080×1920, MIPI, 2000nits, -20~70°C, 102.5×175mm,In-Cell)
ZS070FHT-L41 (LCD, 1920×1080, eDP, 500nits, 0~50°C, 157.444×94.81mm,In-Cell)
P0700WSF3QB00 (LCD, 1024×600, LVDS, 500nits, -20~70°C, 160.7×100mm,In-Cell)
Ultra-Thin Design
-Touch sensor integrated into the LCD, making the module thinner and lighter.
High Optical Clarity
-Fewer layers provide better brightness, sharper images, and richer colors.
Fast Touch Response
-More sensitive and quicker touch interaction with low latency.
Narrow Bezel
-Supports slim-border designs and larger viewing areas.
Low Power Consumption
-Improved light efficiency helps reduce energy use.
High Reliability
-Fewer components improve durability and long-term stability.
Sunlight Readability
-Better visibility in outdoor and high-brightness environments.
Easy Integration
-Simplified assembly with touch and display combined in one module.
Wide Application Range
-Ideal for smartphones, industrial control, medical devices, automotive, and smart terminals.
Consumer Electronics
-Smartphones, tablets, and handheld devices.
Smart Home Devices
-Control panels, smart thermostats, and security systems.
Industrial Equipment
-HMI terminals, automation controls, and portable instruments.
Medical Devices
-Patient monitors, diagnostic equipment, and healthcare tablets.
Automotive Displays
-Infotainment systems, digital dashboards, and EV charging stations.
Retail & POS Systems
-Self-service kiosks, payment terminals, and interactive displays.
Smart Wearables
-Smartwatches, fitness trackers, and wearable electronics.
Many customers face challenges such as bulky display structures, poor outdoor visibility, touch response issues, complex integration processes, and limited customization options. In demanding applications, reliability, durability, and low power consumption are also key concerns.
Youritech's In-Cell Touch Display solutions address these challenges by integrating touch functionality directly into the display, creating thinner and lighter modules with enhanced optical clarity. We offer high-brightness displays, advanced touch performance, optical bonding, custom cover glass design, and controller board integration to improve user experience and simplify product development. With strong R&D, customization, and manufacturing capabilities, we help customers achieve higher reliability, faster time-to-market, and cost-effective production.
Youritech provides comprehensive In-Cell Touch Display development and manufacturing services, from concept design to mass production. Our capabilities include display module customization, touch integration, cover glass design, optical bonding, and embedded controller board development. We support a wide range of sizes, interfaces, brightness levels, and mechanical structures to meet specific application requirements.
With experienced engineering teams, advanced production facilities, and strict quality control systems, Youritech delivers high-performance, reliable display solutions for consumer electronics, industrial equipment, medical devices, automotive systems, smart home products, and other demanding applications. Our end-to-end manufacturing capabilities help customers accelerate product development, reduce integration complexity, and ensure consistent product quality.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
