7.84 Inch Stretched Bar Display MIPI Interface 480x1280 IPS High Brightness Bar LCD Display

Part No.:ET078HD01-T
Size:7.84″ inch
Resolution:400x1280
Panel Interface:MIPI 40 Pins
Display mode:Transmissive

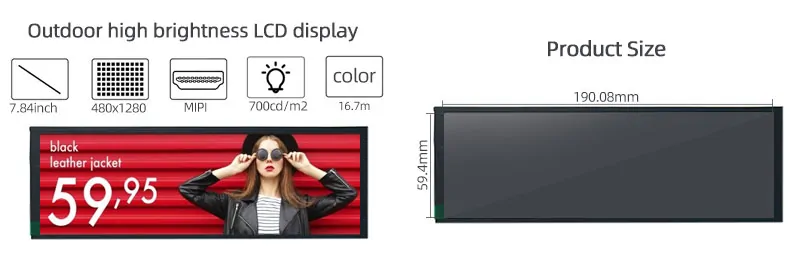

Outline Dimension:67.8(W)x205.78(H)mm
Active Area:59.4(W)x190.08(H)mm(A.A)
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

ET078HD01-T Overview
ET078HD01-T is a 7.84 inch diagonal stretched bar LCD display product, featuring a transmissive display mode. ET078HD01-T supports a resolution of 400×1280 with a bar-type aspect ratio, delivering clear and vivid image performance. It adopts a MIPI interface with 40 pins for stable signal transmission. The display features an active area of 59.4(W) × 190.08(H) mm and an outline dimension of 67.8(W) × 205.78(H) mm. It provides a typical brightness of 700 cd/m² and wide viewing angles of 80/80/80/80 (L/R/U/D), ensuring excellent visibility from multiple directions. Designed for reliable operation, ET078HD01-T supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. This model is supplied without a touch panel.

Feature
Bar Type
IPS
High Brightness 700cd/m2

Application
For Outdoor high brightness,Automotive display,Industrial.
