7.5 Inch E Ink E-Paper Display Module 800×480 SPI Low Power Wide Temperature Electronic Paper Display

7.5 Inch E Ink E-Paper Display Module 800×480 SPI Low Power Wide Temperature Electronic Paper Display Overview

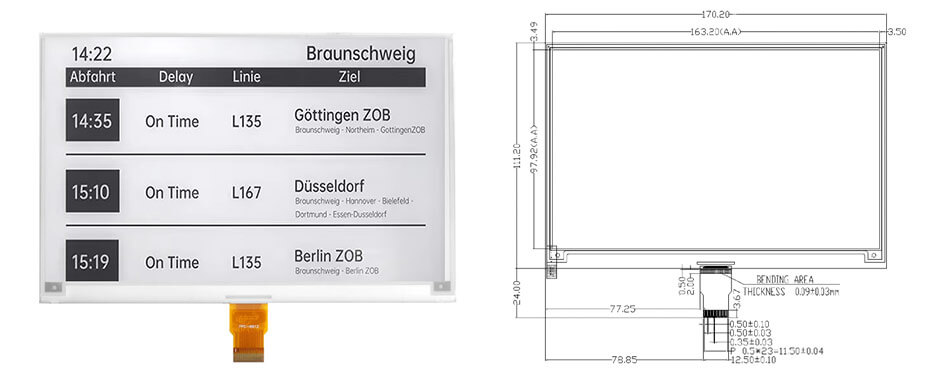

ET075EP06WT-J is a 7.5-inch diagonal E Ink E-Paper display module featuring an 800×480 resolution. It adopts EPD (Electrophoretic Display) technology and an SPI interface for communication, providing a low-power display solution for electronic paper applications. It features an active area of 163.2(W) × 97.92(H) mm and an outline dimension of 170.2(W) × 111.2(H) × 1.20(D) mm. ET075EP06WT-J supports a wide operating temperature range from -25°C to 50°C and a storage temperature range from -25°C to 70°C. The module does not include a touch panel, making it suitable for low-power electronic paper applications requiring reliable operation across a wide temperature range.

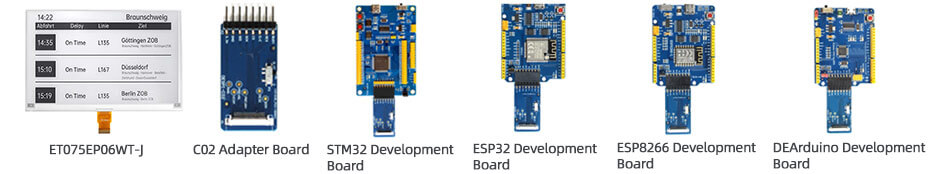

7.5 Inch E Ink Display Solution For Reference
ET075EP06WT-J
C02 Adapter Board
STM32 Development Board
ESP32 Development Board
ESP8266 Development Board
DEArduino Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
