7.2 Inch High Brightness Display 1000nits IPS 1280x370 Parallel RGB TFT LCD Display

7.2 Inch High Brightness LCD Display Overview

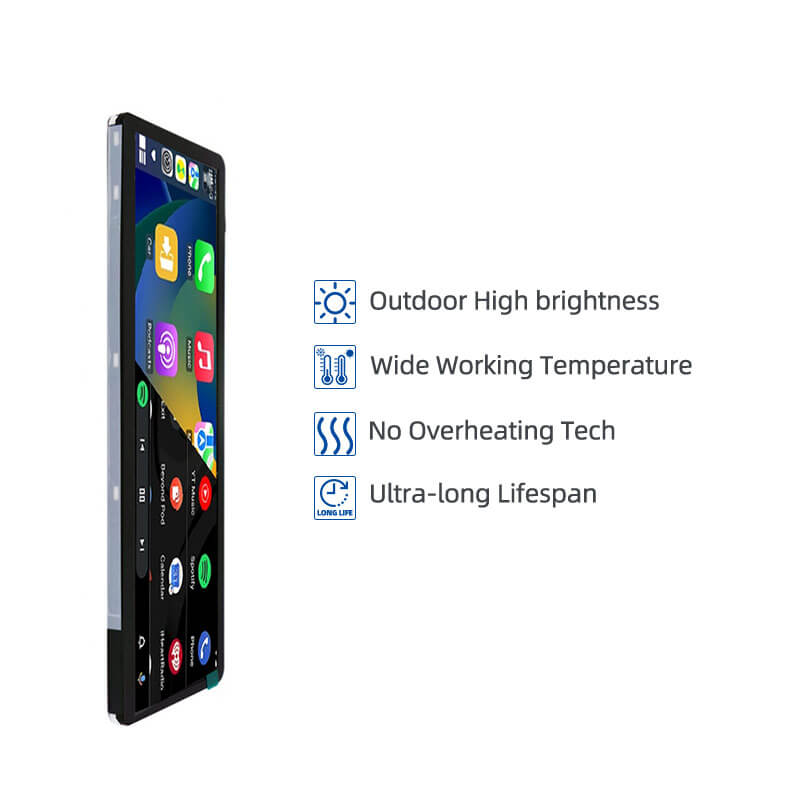

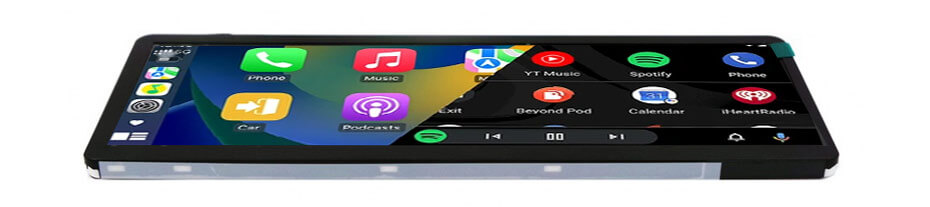

The ET072BA01-S is a 7.2-inch high-brightness IPS TFT LCD display with a 1280×370 resolution and Parallel RGB (1 ch, 6-bit) interface. It features a transmissive display mode, typical brightness of 1000 cd/m², and viewing angles of 65°/65°/55°/65° (L/R/U/D). The display has an active area of 173.76×50.23 mm within an outline of 186.18×67.35 mm, operates from –20 °C to 70 °C, and does not support touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
