6 Inch TFT LCD Display 1080×1920 MIPI High Brightness 800nits LCD Display With In-Cell Touch For EV Charger

6 Inch TFT LCD Display 1080×1920 MIPI High Brightness 800nits LCD Display With In-Cell Touch For EV Charger Video

6 Inch TFT LCD Display 1080×1920 MIPI High Brightness 800nits LCD Display With In-Cell Touch For EV Charger Overview

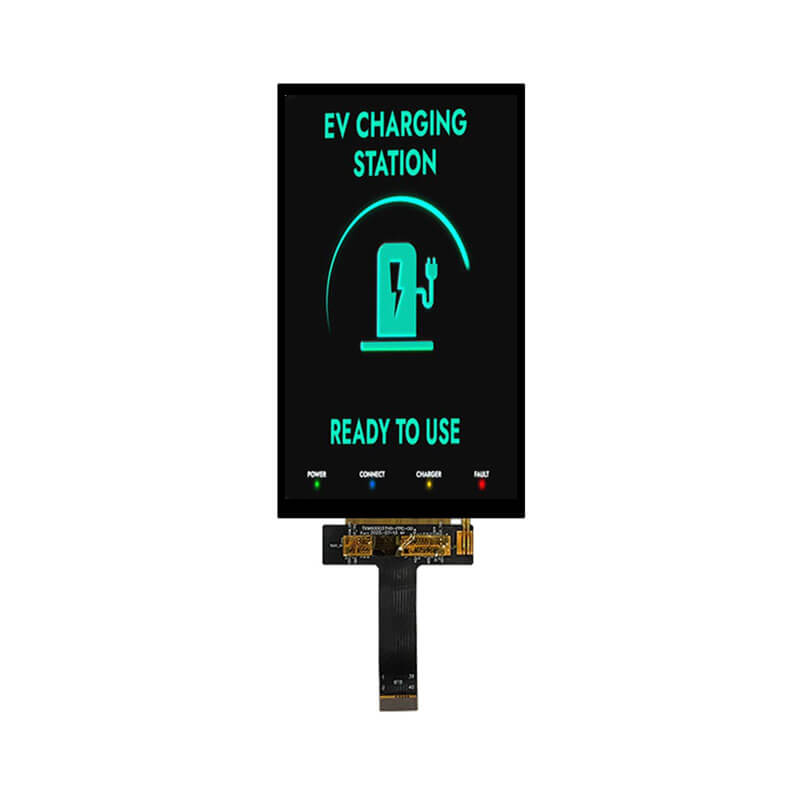

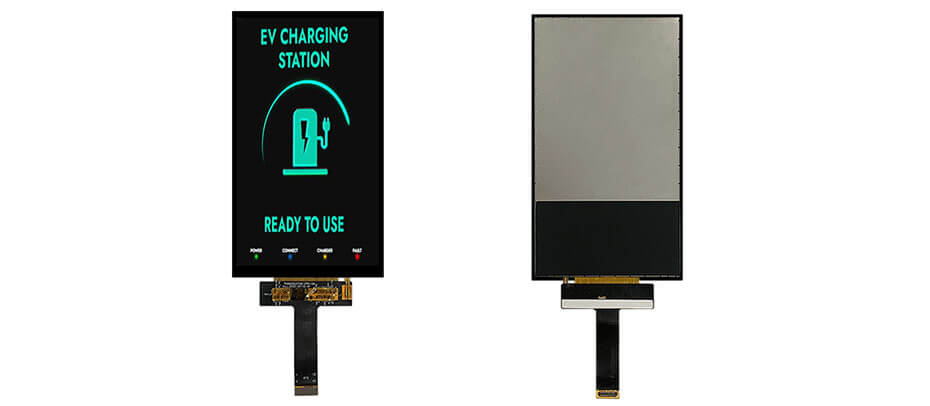

ET060FH05-TT is a 6.0-inch TFT LCD display module designed for EV charger, handheld terminal, and industrial control applications. ET060FH05-TT supports a display resolution of 1080×1920 (FHD+) with a portrait aspect ratio, utilizing a MIPI interface and Transmissive display mode. It features an active area of 74(W) × 132(H) mm and an outline dimension of 81(W) × 143(H) mm. ET060FH05-TT provides a typical brightness of 800 cd/m² and wide viewing angles of 80/80/80/80 (L/R/U/D), ensuring clear visibility and consistent image performance. Designed for reliable operation in demanding environments, it supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. Combining Full HD+ resolution, high brightness, and industrial-grade durability, ET060FH05-TT is an ideal display solution for next-generation EV charging systems and smart embedded devices.

Youritech EV Charger Display -Global Leading Touchscreen Design, Integration and Manufacturing

-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support

Engineered Hardware for EV Charger Displays

High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.

Applications For EV Charger Display

-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations

Youritech EV Charger Display Production and Manufacturing
