6.8 Inch Wide Temperature LCD Display Overview

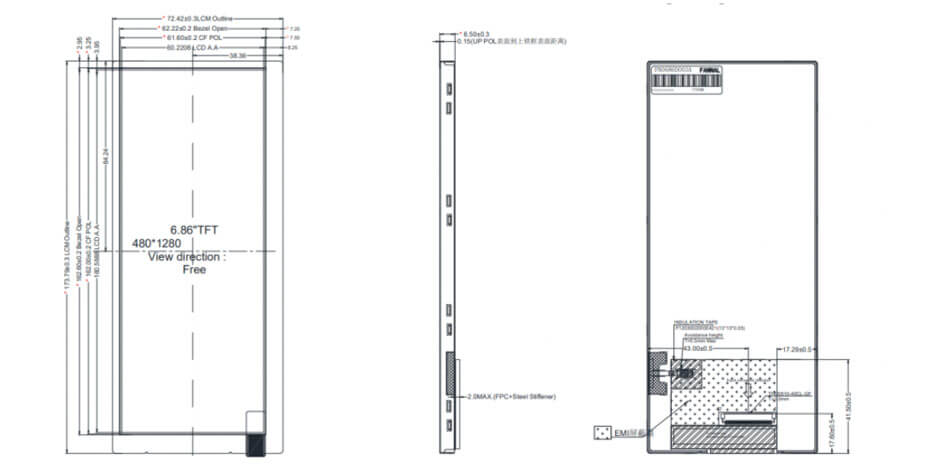

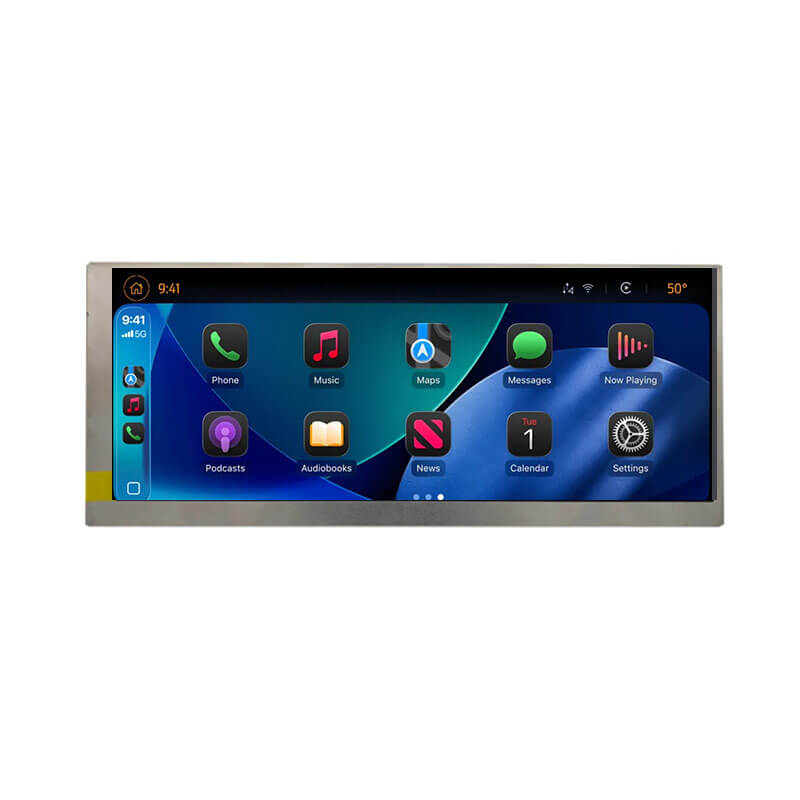

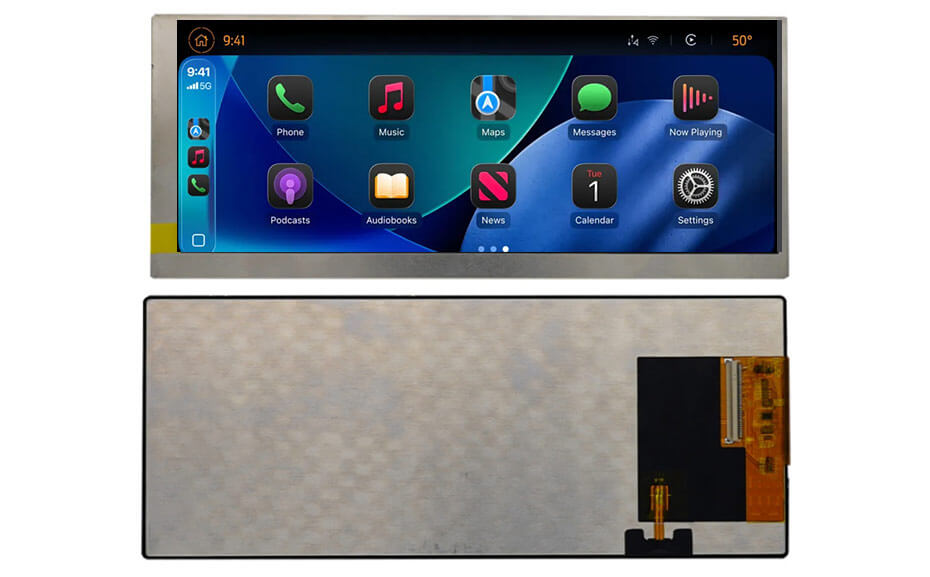

The ET068BA01-F is a 6.8-inch wide-temperature, high-brightness TFT LCD display module. It features a resolution of 480x1280, utilizes a MIPI interface, and provides a brightness of 800 nits. The module supports a wide operating temperature range of -30°C to 85°C, with the same range for storage. Its active display area measures 60.2208x160.589 mm, housed within an outline dimension of 72.42x173.79 mm. The screen offers symmetrical viewing angles of 80/80/80/80 (L/R/U/D) and does not include touch functionality.
More 6.8 Inch Wide Temperature Displays For Reference

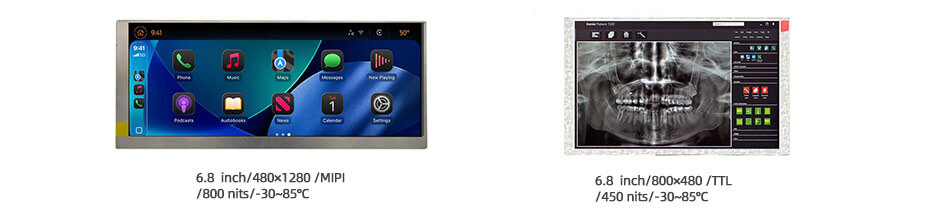

ET068BA01-F (LCD, 480×1280, MIPI, IPS, 800nits, -30~85°C, 72.42×173.79mm)
ET068WV01-S (LCD, 800×480, TTL, IPS, 450nits, -30~85°C, 165×100mm)
ET067WS01-GL (LCD, 1024×600,LVDS, IPS, 1000nits, -30~80°C, 160.2×90.3mm)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
