5.1"-7" AMOLED

6.6 Inch High Brightness Display 770nits IPS 1080x2400 MIPI OLED Display

Part No.:ET066AM01-A
Size:6.6″ inch
Resolution:1080x2400
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:71.452x157.41mm
Active Area:69.552x154.56mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:770(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

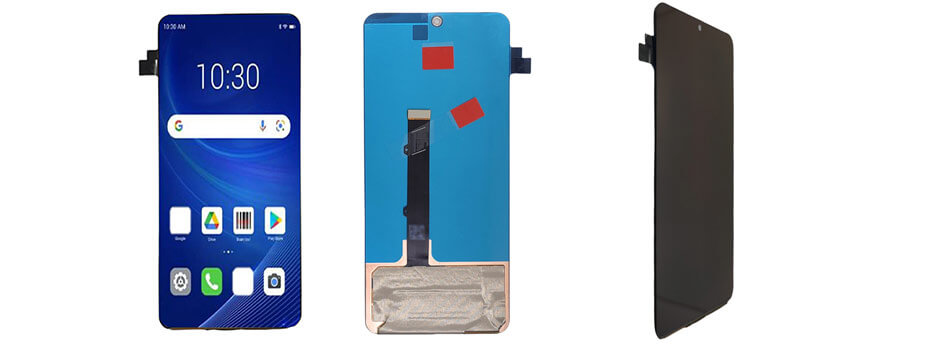

6.6 Inch High Brightness Display Overview
The ET066AM01-A is a 6.6-inch high-brightness AM-OLED display with a 1080×2400 resolution and MIPI interface. It offers typical brightness of 770 cd/m², an active area of 69.552×154.56 mm within an outline of 71.452×157.41 mm, and operates from –20 °C to 70 °C. Touch functionality is not supported.

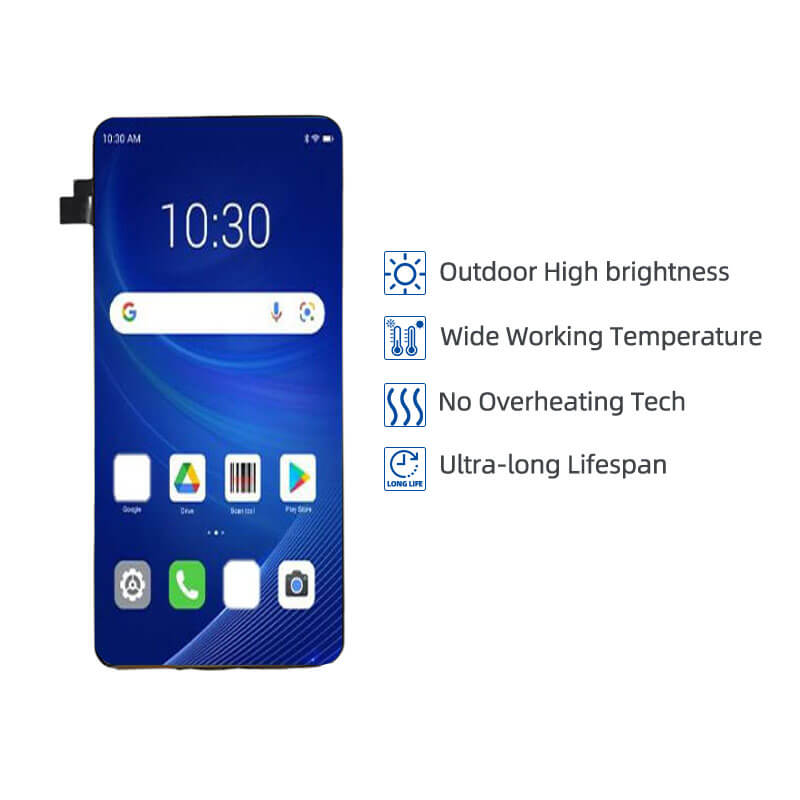

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
