6.5 Inch Stretched Bar Display 1024x400 IPS LVDS 800nits High Brightness TFT LCD Display

6.5 Inch Stretched Bar Display Overview

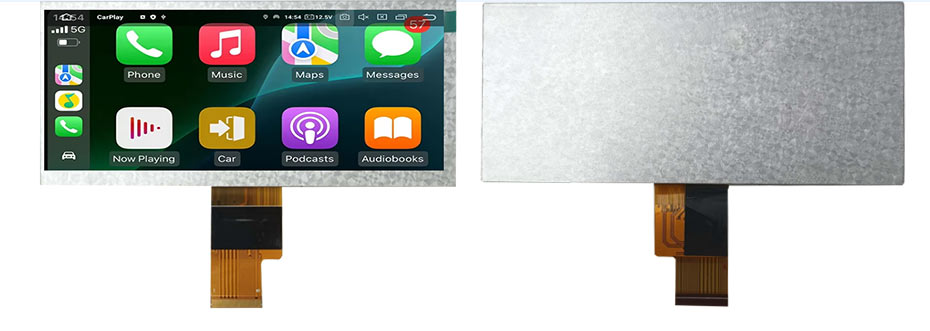

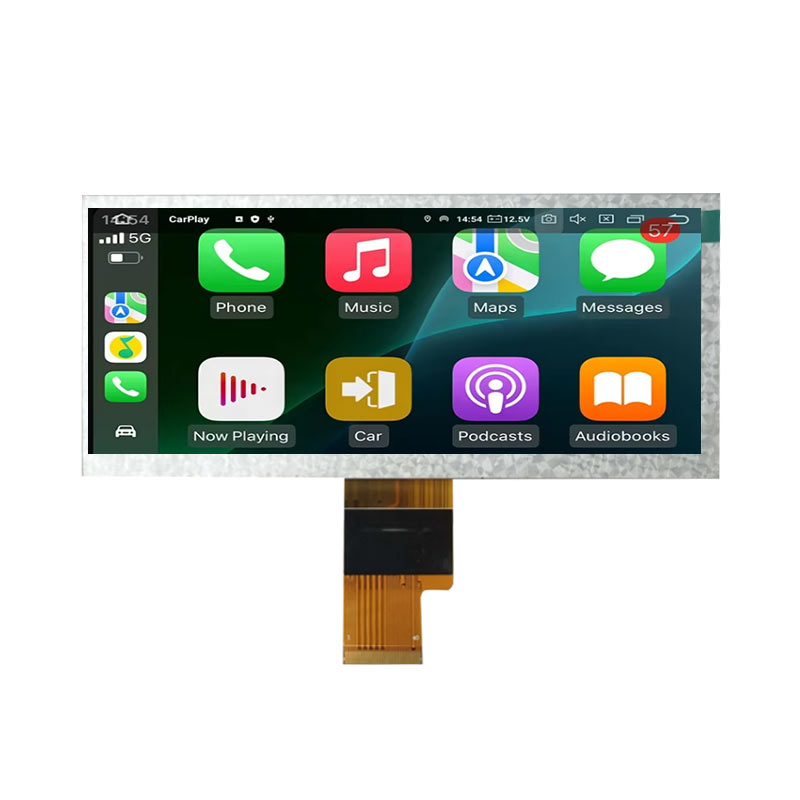

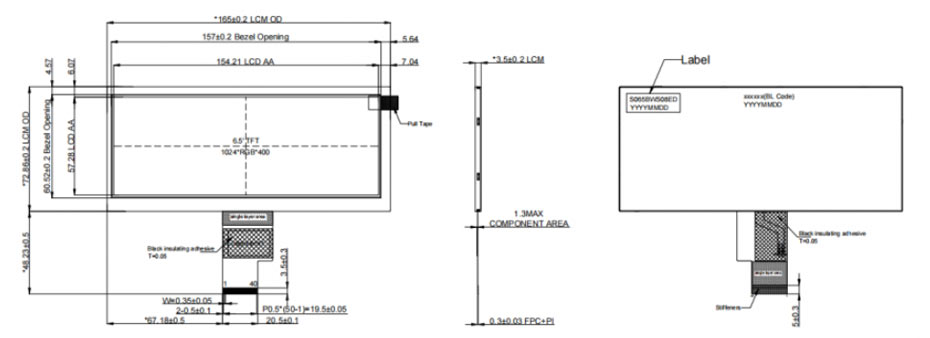

ET065BA02-S is a 6.5-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 1024 × 400 pixels and uses an LVDS interface for high-speed signal transmission. The display provides an active area of 154.21 (W) × 57.28 (H) mm within a slim outline dimension of 165 (W) × 72.86 (H) mm, making it ideal for wide, horizontal elongated applications. With wide viewing angles of 85° in all directions (L/R/U/D), it delivers stable and consistent image quality. The typical brightness reaches 800 cd/m², ensuring excellent readability even in bright ambient-light conditions. ET065BA02-S is designed for reliable performance across a wide temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it suitable for high-brightness industrial displays, automotive auxiliary screens, and embedded system applications.

More 6.5 Inch Bar Displays For Reference

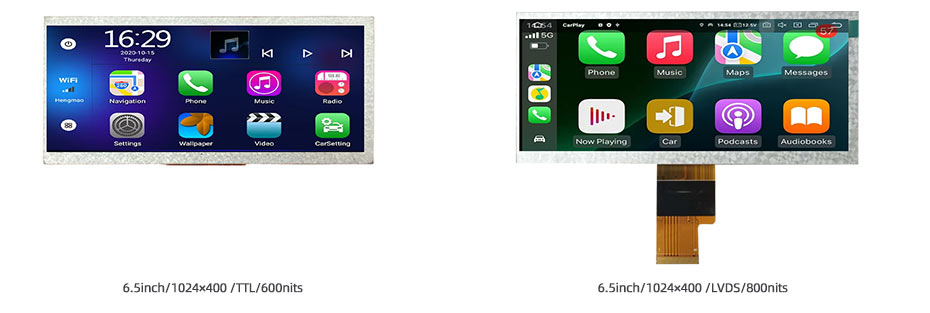

ET065BA01-S (1024x400 , TTL, IPS, 600nits, -20~70°C, 165x72.86mm)
ET065BA02-S (1024x400, LVDS, IPS, 800nits, -20~70°C, 165x72.86mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
