6.2 Inch TFT LCD Display 480×1280 MIPI High Brightness 1200nits Wide Temperature LCD Display With In-Cell Touch

6.2 Inch TFT LCD Display 480×1280 MIPI High Brightness 1200nits Wide Temperature LCD Display With In-Cell Touch Overview

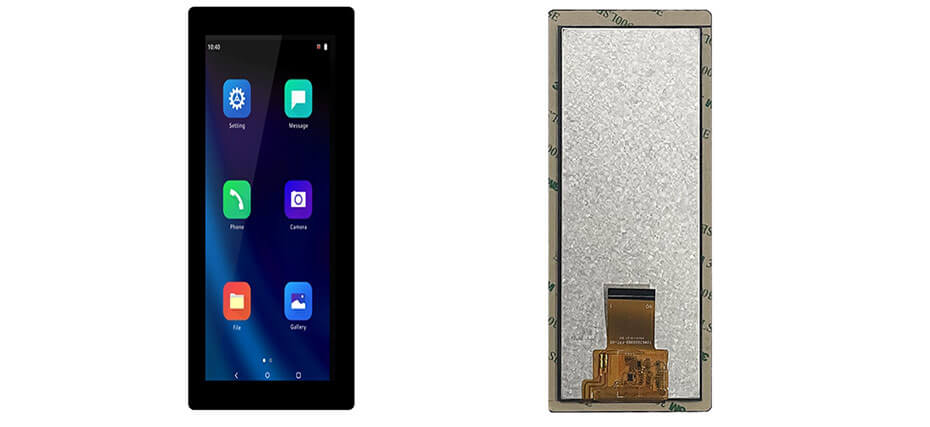

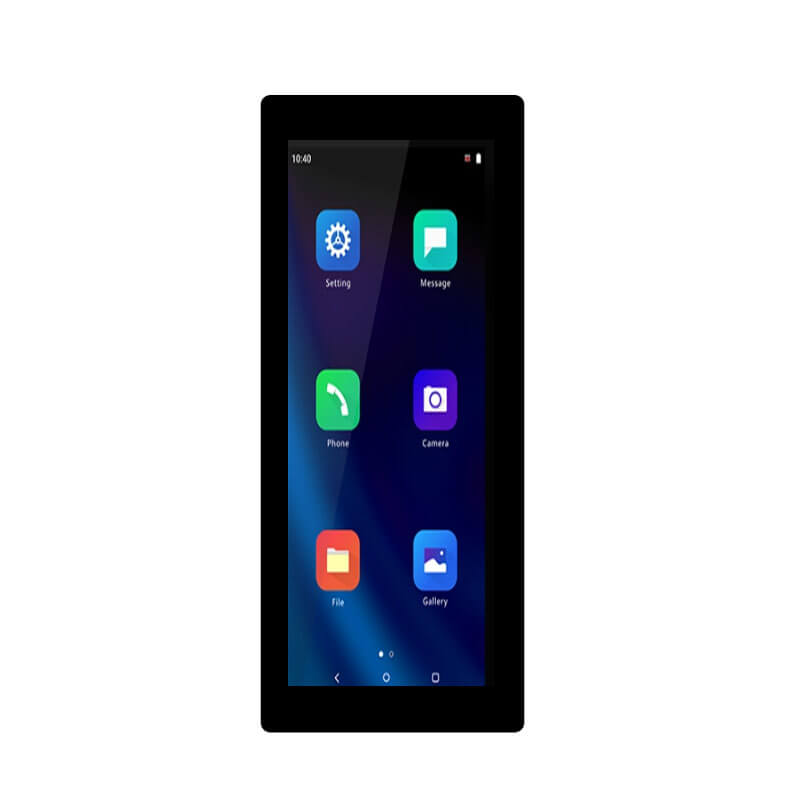

ET062BA06-TT is a 6.2-inch TFT LCD display module featuring a 480×1280 resolution with an optimized pixel arrangement for delivering clear and stable visual performance. It adopts a MIPI interface for fast and reliable signal transmission and integrates In-Cell touch technology, enabling a thinner structure and more responsive touch interaction. With a transmissive display mode, ET062BA06-TT provides 1200 cd/m² typical brightness, ensuring excellent readability in high ambient light and outdoor environments. It features an active area of 54(W) × 146(H) mm and an outline dimension of 62(W) × 163(H) mm, offering a compact and efficient design for space-limited applications. The display supports a wide viewing angle of 80/80/80/80 (L/R/U/D), delivering consistent image quality from all directions. Designed for harsh industrial environments, ET062BA06-TT supports an ultra-wide operating temperature range of -30°C to 85°C and storage temperatures from -40°C to 90°C, making it an ideal display solution for automotive systems, industrial control devices, outdoor handheld equipment, and rugged smart terminals.

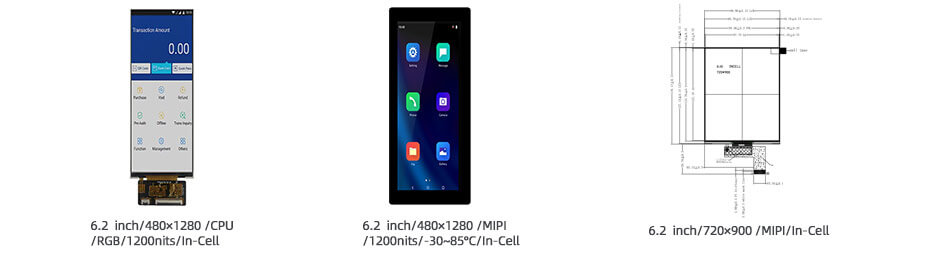

More 6.2 Inch Display With In-Cell Touch For Reference
ET062BA05-TT (LCD, 480×1280, CPU/RGB, 1200nits, -20~70°C, 54×147mm,In-Cell)
ET062BA06-TT (LCD, 480×1280, MIPI, 1200nits, -30~85°C, 62×163mm,In-Cell)
ET062SQ01-ZT (LCD, 720×900, MIPI, -20~70°C, 99.9×128.12mm,In-Cell)

Key Features For Youritech In-Cell Touch Display

Ultra-Thin Design
-Touch sensor integrated into the LCD, making the module thinner and lighter.
High Optical Clarity
-Fewer layers provide better brightness, sharper images, and richer colors.
Fast Touch Response
-More sensitive and quicker touch interaction with low latency.
Narrow Bezel
-Supports slim-border designs and larger viewing areas.
Low Power Consumption
-Improved light efficiency helps reduce energy use.
High Reliability
-Fewer components improve durability and long-term stability.
Sunlight Readability
-Better visibility in outdoor and high-brightness environments.
Easy Integration
-Simplified assembly with touch and display combined in one module.
Wide Application Range
-Ideal for smartphones, industrial control, medical devices, automotive, and smart terminals.

Applications For Youritech In-Cell Touch Display

Consumer Electronics
-Smartphones, tablets, and handheld devices.
Smart Home Devices
-Control panels, smart thermostats, and security systems.
Industrial Equipment
-HMI terminals, automation controls, and portable instruments.
Medical Devices
-Patient monitors, diagnostic equipment, and healthcare tablets.
Automotive Displays
-Infotainment systems, digital dashboards, and EV charging stations.
Retail & POS Systems
-Self-service kiosks, payment terminals, and interactive displays.
Smart Wearables
-Smartwatches, fitness trackers, and wearable electronics.

Youritech In-Cell Touch Display Customer Pain Points & Our Solutions

Many customers face challenges such as bulky display structures, poor outdoor visibility, touch response issues, complex integration processes, and limited customization options. In demanding applications, reliability, durability, and low power consumption are also key concerns.

Youritech's In-Cell Touch Display solutions address these challenges by integrating touch functionality directly into the display, creating thinner and lighter modules with enhanced optical clarity. We offer high-brightness displays, advanced touch performance, optical bonding, custom cover glass design, and controller board integration to improve user experience and simplify product development. With strong R&D, customization, and manufacturing capabilities, we help customers achieve higher reliability, faster time-to-market, and cost-effective production.

Youritech In-Cell Touch Display R&D & Manufacturing Capabilities

Youritech provides comprehensive In-Cell Touch Display development and manufacturing services, from concept design to mass production. Our capabilities include display module customization, touch integration, cover glass design, optical bonding, and embedded controller board development. We support a wide range of sizes, interfaces, brightness levels, and mechanical structures to meet specific application requirements.

With experienced engineering teams, advanced production facilities, and strict quality control systems, Youritech delivers high-performance, reliable display solutions for consumer electronics, industrial equipment, medical devices, automotive systems, smart home products, and other demanding applications. Our end-to-end manufacturing capabilities help customers accelerate product development, reduce integration complexity, and ensure consistent product quality.
