17"-31.5" Touch Screen (55”)

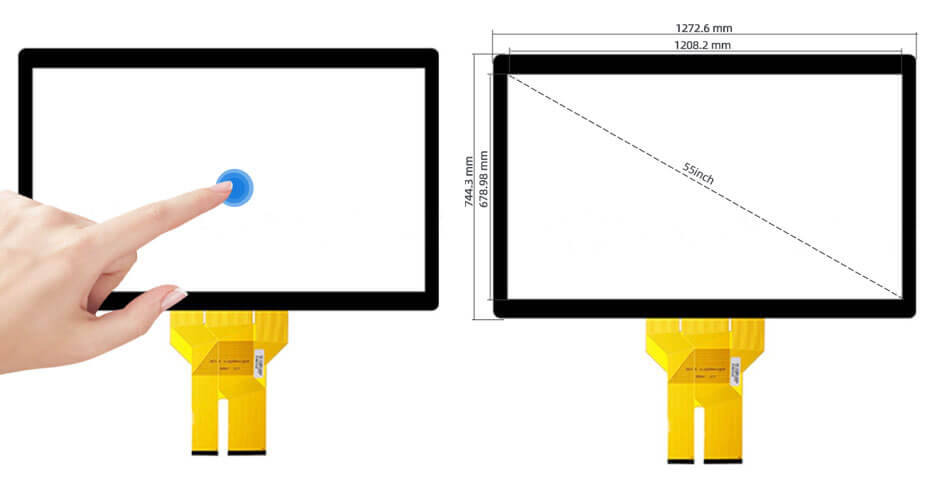

55 Inch Capacitive Touch Screen G+G 16:9 USB Multi-touch Screen For Education All-in-one Machine

  • Part No.:ET550CTP02
  • Size:55″ inch
  • Resolution:Optional
  • Panel Interface:USB
  • Display mode:PCAP
  • Outline Dimension:1272.6x744.3mm
  • Active Area:1208.2x678.98mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness(cd/m2):Optional
  • Operation / Storage Temp:-20~60°C / -30~75°C
  • Touch:yes

55 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 1208.2x678.98 mm
Outline Dim.: 1272.6x744.3 mm
Operation Temperature: -20~60 °C
Storage Temperature: -30~75 °C





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS

No specification brief is filled in!
X
youritech

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
