5.83 Inch 3-Color E-Ink E-Paper Display 600×448 SPI Black White Yellow Electronic Paper Screen

5.83 Inch 3-Color E-Ink E-Paper Display 600×448 SPI Black White Yellow Electronic Paper Screen Overview

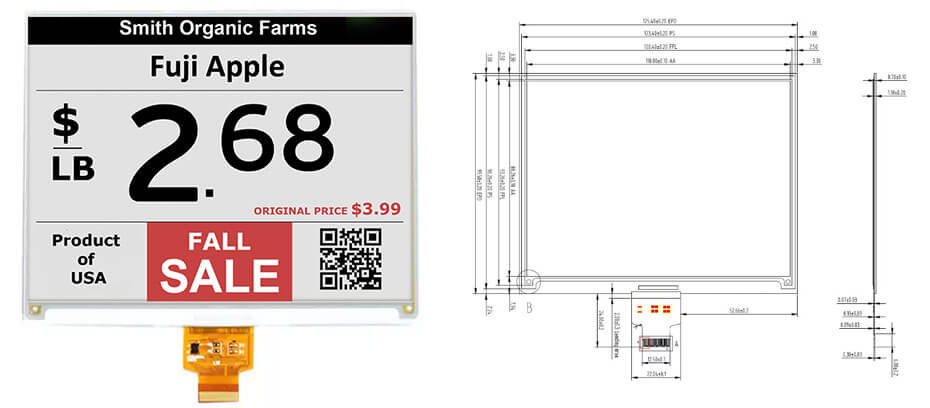

ET058EP04+STM32 is a 5.83-inch diagonal 3-color E Ink E-Paper display module featuring a 600×448 resolution and supporting Black, White, and Yellow colors. It adopts EPD (Electrophoretic Display) technology and an SPI interface for communication, with an integrated STM32 controller. The module features an active area of 118.80(W) × 88.26(H) mm and an outline dimension of 125.40(W) × 99.50(H) × 1.18(D) mm. ET058EP04+STM32 operates at temperatures from 0°C to 50°C and supports storage temperatures from -25°C to 60°C. The module does not include a touch panel, making it suitable for electronic paper applications requiring multi-color display, low power consumption, and clear static image presentation.

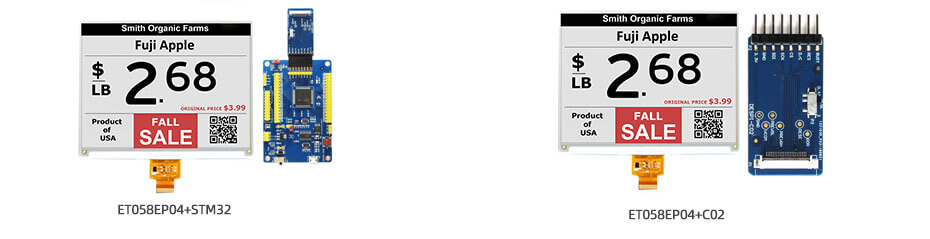

5.83 Inch E Ink Display Solution For Reference
ET058EP04+STM32

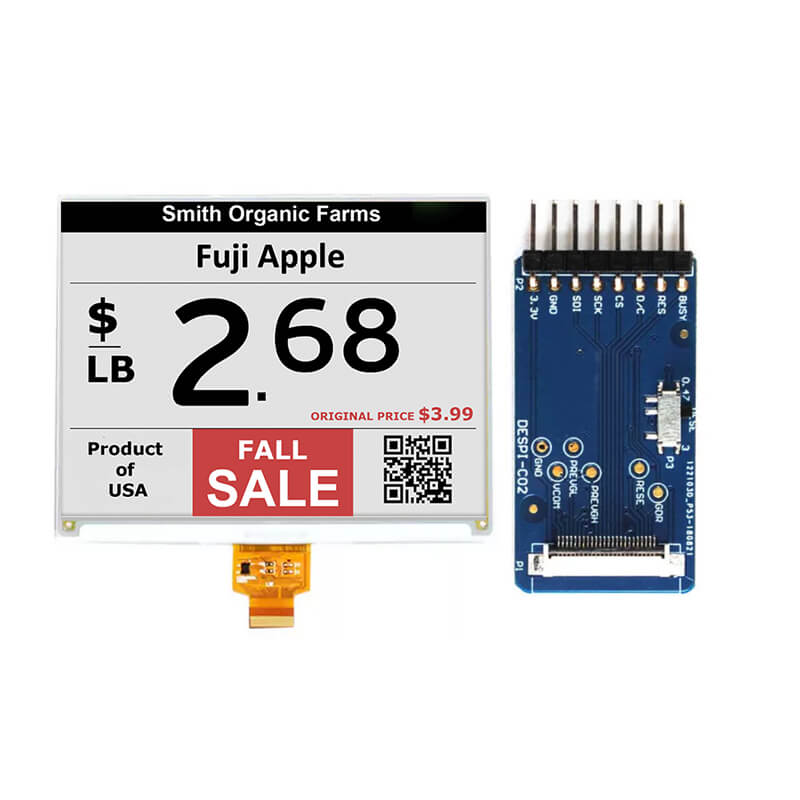

ET058EP04+C02

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
