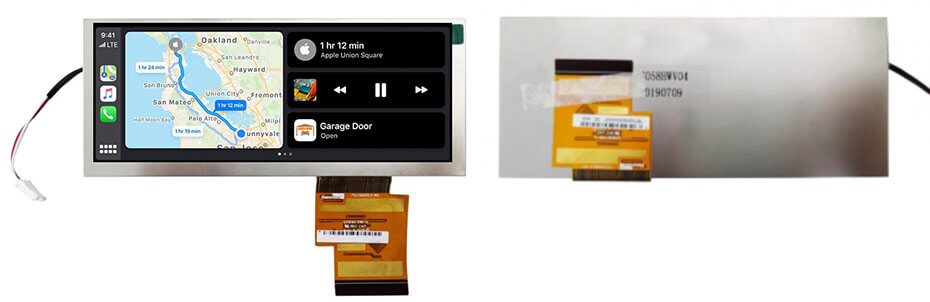

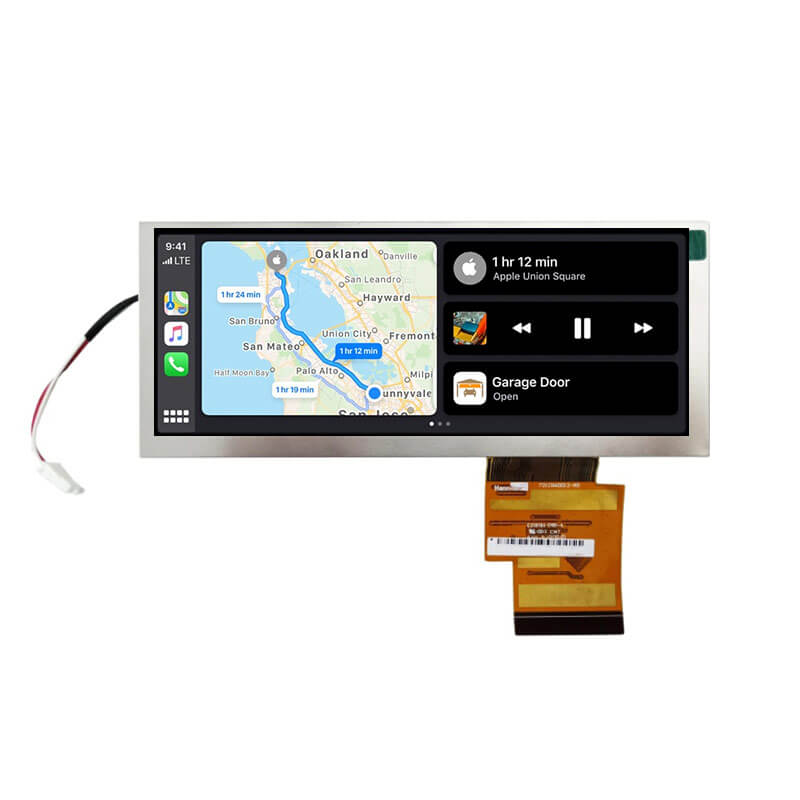

5.8 Inch Wide Temperature LCD Display 800×320 TTL -30°C to 85°C 500nits High Brightness TFT LCD Display

  • Part No.:ET058BA01-S
  • Size:5.8″ inch
  • Resolution:800x320
  • Panel Interface:TTL
  • Display mode:Transmissive

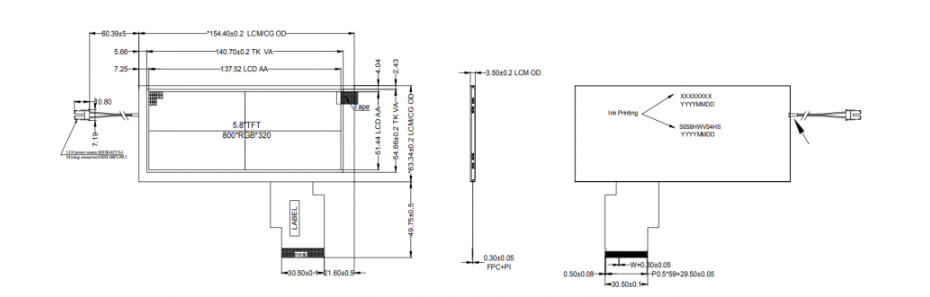

  • Outline Dimension:155.2x64.46mm
  • Active Area:137.52x51.44mm
  • Viewing Angle L/R/U/D:65/65/65/55
  • Brightness(cd/m2):500nits
  • Operation / Storage Temp:-30~85°C / -40~85°C
  • Touch:no


5.8 Inch Wide Temperature LCD Display Overview
5.8 Inch Wide Temperature LCD Display 800×320 TTL -30°C to 85°C 500nits High Brightness TFT LCD Display.


More 5.8 Inch Wide Temperature Displays For Reference
ET058BA01-S (LCD
, 800×320, TTL, IPS, 500nits, -30~85°C, 155.2×64.46mm)
ET059WV01-R (LCD, 852×600, MIPI/RGB, IPS, 880nits, -30~80°C, 133.66×86.83mm)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
