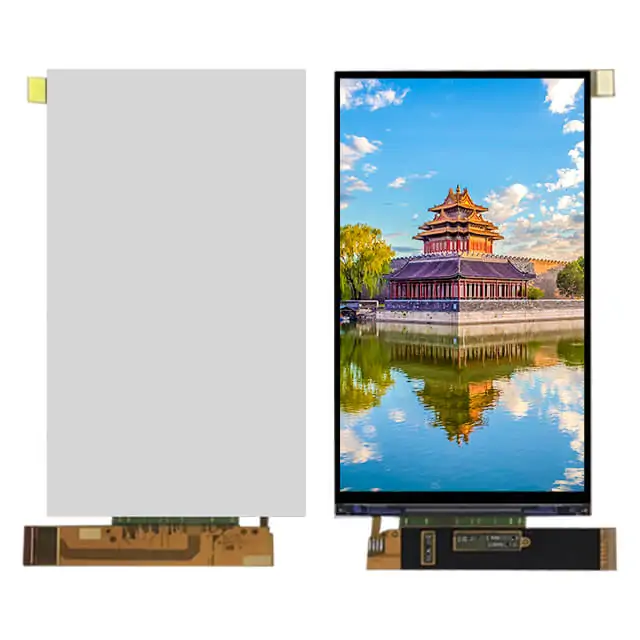

5.5inch TFT LCD 1080x1920 MIPI 39 pins 450nits WLED for 3d printer panel

Product size

5.5-inch

Type

LCM ,   Oxide TFT-LCD

Pixel Format

1080(RGB)×1920   (FHD)  403PPI

Configuration

RGB Vertical Stripe

Active Area

68.04 × 120.96 (H×V)

Outline Dim.

70.84 × 128.56 × 1.65 (H×V×D)

Luminance

450 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

View Direction

Symmetry

Response Time

35 (Typ.)(Tr+Td) ms

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Operating Mode

New Mode2, Normally Black, Transmissive

Support Color

16.7M   70% NTSC

Light Source

6S2P WLED , No Driver

Weight

23.0g (Typ.)

Designed For

Mobile Phone

Frequency

60Hz

Touch Panel

Without

Interface Type

MIPI (4 data lanes) , 39 pins FPC

Power Supply

1.8/5.8/5.6V (Typ.)(VDDI/VSP/VSN)

Environment

Storage Temp.: -30 ~ 70 °C    Operating Temp.: -20 ~ 60 °C
