5.1"-7" LCD Display (5.5")

5.5 Inch High Brightness Display 1000nits 720x1280 MIPI IPS TFT LCD Display

  • Part No.:ET055HD11-T
  • Size:5.5″ inch
  • Resolution:720x1280
  • Panel Interface:MIPI
  • Display mode:Transmissive
  • Outline Dimension:70.34x128.1mm
  • Active Area:68.04x120.96mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness(cd/m2):1000(Min.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

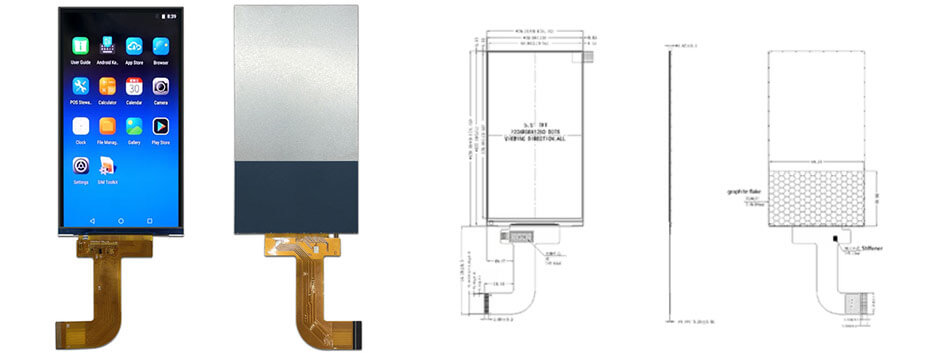

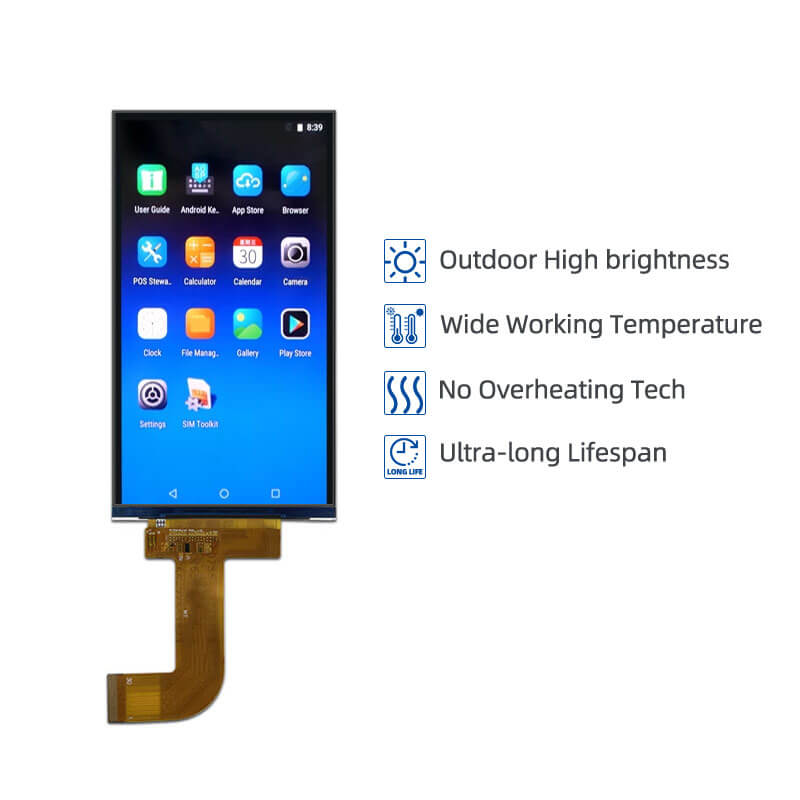

5.5 Inch High Brightness LCD Display Overview
5.5 Inch High Brightness Display 1000nits 720x1280 MIPI IPS TFT LCD Display.

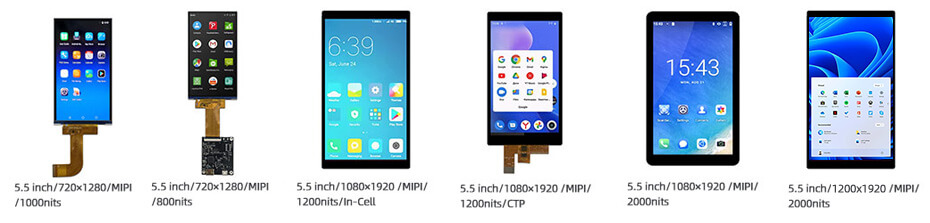

More 5.5 Inch High Brightness LCD Display For Reference
ET055HD11-T (720x1280, MIPI, 1000nits, -20~70°C, 70.34x128.1mm)
ET055HD11-T-HDMI (720x1280, MIPI, 800nits, -20~70°C, 70.34x128.1mm)
ET055FH10-TT (1080x1920, MIPI, 1200nits, -20~60°C, 75.92x136.3mm, In-Cell)
ET055WU01-TT (1080x1920, MIPI, 1200nits, -20~60°C, 75.8x139.9mm, CTP)
ET055WU06-TT (1080x1920, MIPI, 2000nits, -20~70°C, 83.7x141.2mm)
ET055WU01-R (1200x1920, MIPI, 2000nits, -20~70°C)
