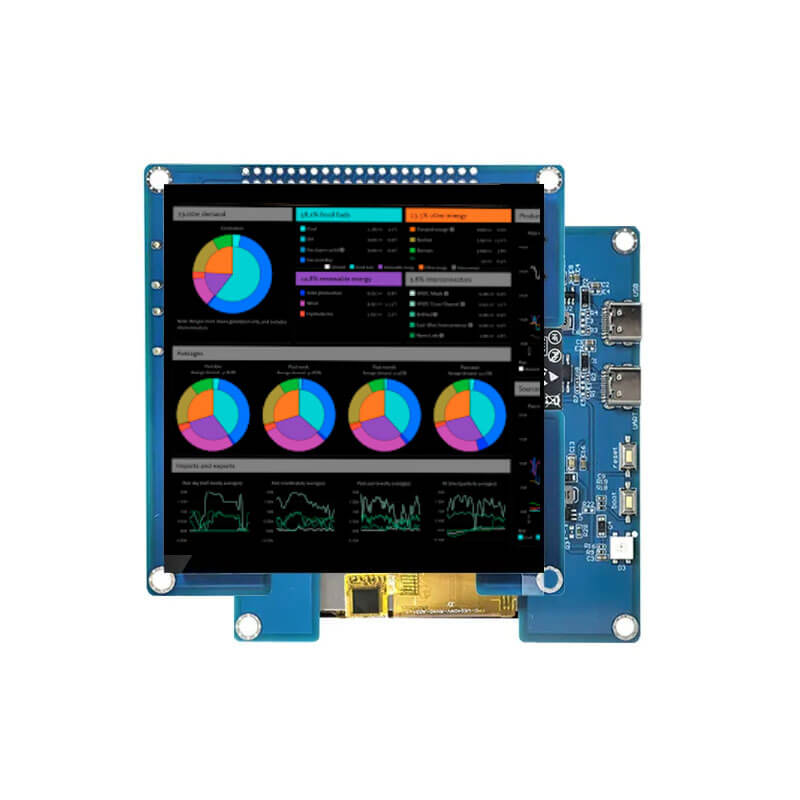

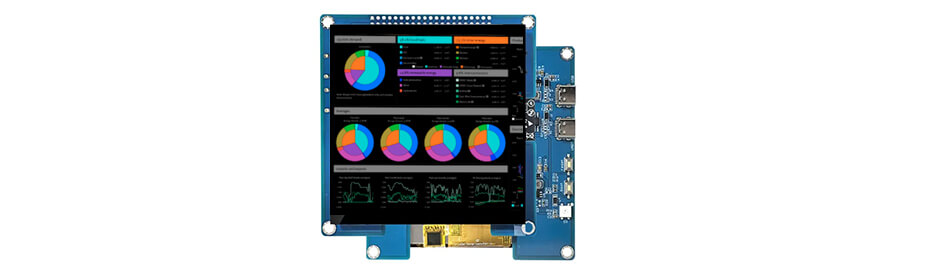

4 Inch 480x480 TFT Square Display RGB IPS ESP32 Touch Screen Arduino LVGL WIFI BLe Uart Smart Module

ESP32-S3-Touch-LCD
ESP32-S3-Touch-LCD-4 is a low-cost, high-performance MCU board designed by Waveshare. It supports 2.4GHz WiFi and BLE 5, integrates
high-capacity Flash and PSRAM, and has a 4-inch capacitive touch LCD screen on board to smoothly run GUI interface programs such as
LVGL. Combine a variety of peripheral interfaces (e.g., CAN, I2C, RS485, etc.) to quickly develop applications such as HMIs for ESP32-S3.
With a wide range of functions and interfaces, it can meet power consumption requirements in Internet of Things (IoT), mobile devices,
smart home and other applications.

Features
4 Inch 480x480 TFT Square Display RGB IPS ESP32 Touch Screen Arduino LVGL WIFI BLe Uart Smart Module.
Model：ET040SM01-VT
1) OS: RTOS
2) CPU: ESP32-S3 240Mhz
3) RAM: 8MB
4) Flash: 16MB
5) Interface: UART/USB
6) Wireless: Support 2.4GHz Wi-Fi、BLE 5、BLE Mesh
7) Size: 4 Inch IPS TFT
8) Resolution: 480×480 Sqaure
9) Brightness: 350 cd/m2
A) Touch Screen: Mult-Point Capacitive Touch
B) Platform: Arduino ESP-IDF LVGL
Onboard Resources

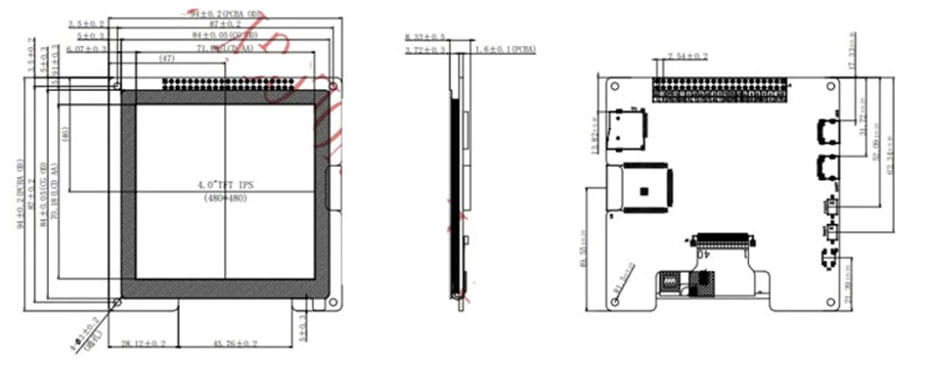

Drawing

Smart Module Applications
Youritech specialized in LCD display (0.96 inch to 32 inch) & Touch panel & Intelligent Control & HMI modules. We have the ability to customize STM32 embedded displays basing on customer's requirements, contact us today to get more details freely. For this GEN-4 Intelligence HMI display, the applications are as bellows:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer.
5. Sports Equipment: running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
8. Security Products: elevator controller, electronic indicator And other fields...

Smart Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.
