0.48"-5" LCD Display (4.3")

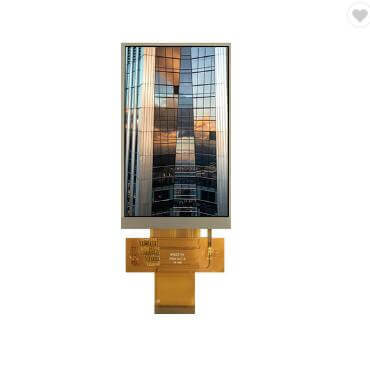

4.3 inch IPS LCD screen with connector type 480x800 resolution with all viewing angle for outdoor hand-held PDA

  • Part No.:ET043WV02-K
  • Size:4.3″ inch
  • Resolution:480x800
  • Panel Interface:
  • Display mode:IPS
  • Outline Dimension:62.50x105.55x2.5
  • Active Area:56.16(H)x93.60(V)
  • Viewing Angle L/R/U/D:80 80 80 80
  • Brightness(cd/m2):450cd/m2
  • Operation / Storage Temp:-20~+70℃ / -30~+80℃
  • Touch:no

4.3 inch IPS LCD screen with connector type 480*800 resolution with all viewing angle for outdoor hand-held PDA

Feature

Spec

Display Spec.













Size

4.3 inch

Resolution

480*800

Technology Type

module

Pixel Configuration

RGB Vertical Stripe

Viewing Direction

80 80 80 80

Mechanical

Characteristics

LCM (W x H x D) (mm)

62.50*105.55*2.5



Active Area(mm)

56.16(H)*93.60(V)



With /Without TSP

With TSP



Driver IC

ILI9806E



Weight (g)

TBD

Electrical Characteristics

Interface

16/18/24-bits RGB interface. 45pin

4.3 inch IPS LCD screen with connector type 480*800 resolution with all viewing angle for outdoor hand-held PDA4.3 inch IPS LCD screen with connector type 480*800 resolution with all viewing angle for outdoor hand-held PDA4.3 inch IPS LCD screen with connector type 480*800 resolution with all viewing angle for outdoor hand-held PDA4.3 inch IPS LCD screen with connector type 480*800 resolution with all viewing angle for outdoor hand-held PDA
