4.3 Inch High Brightness LCD Display Overview

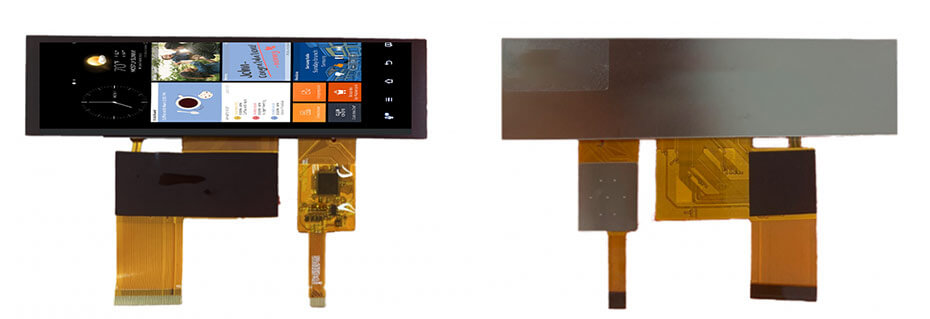

ET043BA01-ST is a 4.3-inch high-brightness IPS TFT LCD display with TTL interface and capacitive touch. It features a resolution of 800×92 in transmissive mode, providing a typical brightness of 800 cd/m² and 80° viewing angles in all directions. The active area measures 108 × 17.5 mm within an outline dimension of 120.7 × 30 mm. The display operates from –20 °C to 70 °C and can be stored between –30 °C and 80 °C.
More 4.3 Inch High Brightness LCD Display For Reference
ET043WV09-TT (480x800, TTL, 800nits, -30~85°C, 62x104.25mm,CTP)
ET043WV12-T (800x480, TTL, 1200nits, -20~70°C, 105.5x67.2mm)
ET043WV21-KRT (800x480, TTL, 1050nits, -30~85°C, 105.4x67.15mm, 4w-RTP)
ET043WV21-KT (800x480, TTL, 1050nits, -30~85°C, 105.4x67.15mm, CTP)
ET043WV01-R (480x272, TTL, 1300nits, -20~70°C, 105.45x67.2mm)
ET043WV01-ATT (480x272, TTL, 1100nits, -20~70°C, 105.5x67.2mm, CTP)
ET043WV01-TS-HDMI (480x272, HDMI, 1000nits, -20~70°C, 105.5x67.2mm)
ET043BA01-ST (800x92, TTL, 800nits, -20~70°C, 120.7x30mm, CTP)
ET043FH01-Z (1920x1080, LVDS, 1000nits, -20~70°C, 106.34x66.01mm)
