LCD above 17.3" (32")

32 Inch High Brightness Display 1500nits IPS 3840x2160 eDP Stretched Bar Display

  • Part No.:ET320UH01-Z
  • Size:32″ inch
  • Resolution:3840x2160
  • Panel Interface:eDP
  • Display mode:Transmissive
  • Outline Dimension:709.4x412mm
  • Active Area:697.306x392.234mm
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness（cd/m2）:1500(Typ.)
  • Operation / Storage Temp:-20~70°C / -40~80°C
  • Touch:no
Get a quote

32 Inch High Brightness LCD Display Overview
The ET320UH01-Z is a 32-inch high-brightness IPS stretched bar display with a 3840×2160 resolution and eDP interface. It features a transmissive panel with an active area of 697.306×392.234 mm and overall dimensions of 709.4×412 mm. The display delivers 1500 cd/m² brightness, offers 89° viewing angles in all directions, operates between –20–70 °C, can be stored from –40–80 °C, and does not support touch functionality.

More 32 Inch High Brightness Display For Reference

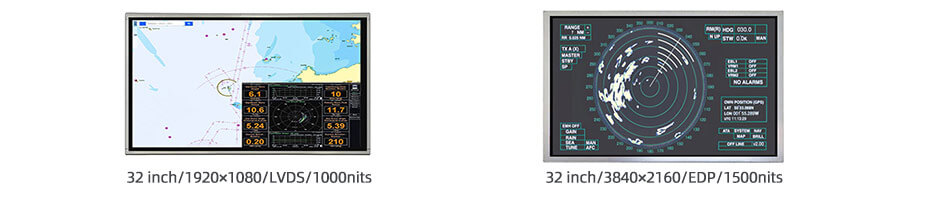

ET320FH01-T (1920x1080, LVDS, 1000nits, -20~70°C, 725.2x422.7mm)
ET320UH01-Z (3840x2160, eDP,1500nits, 0~50°C, 709.4x412mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing

ET381DLN01.0 is a 3.8 inch diagonal AM-OLED display panel product from AU Optronics Corp. (hereafter called AUO), it self emiting, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -40 ~ 80°C . It's general features are summarized in the following: Wide Color Gamut, DCI-P3, sRGB, Portrait type , for Virtual Reality application.
