3.92 Inch AMOLED Display Overview

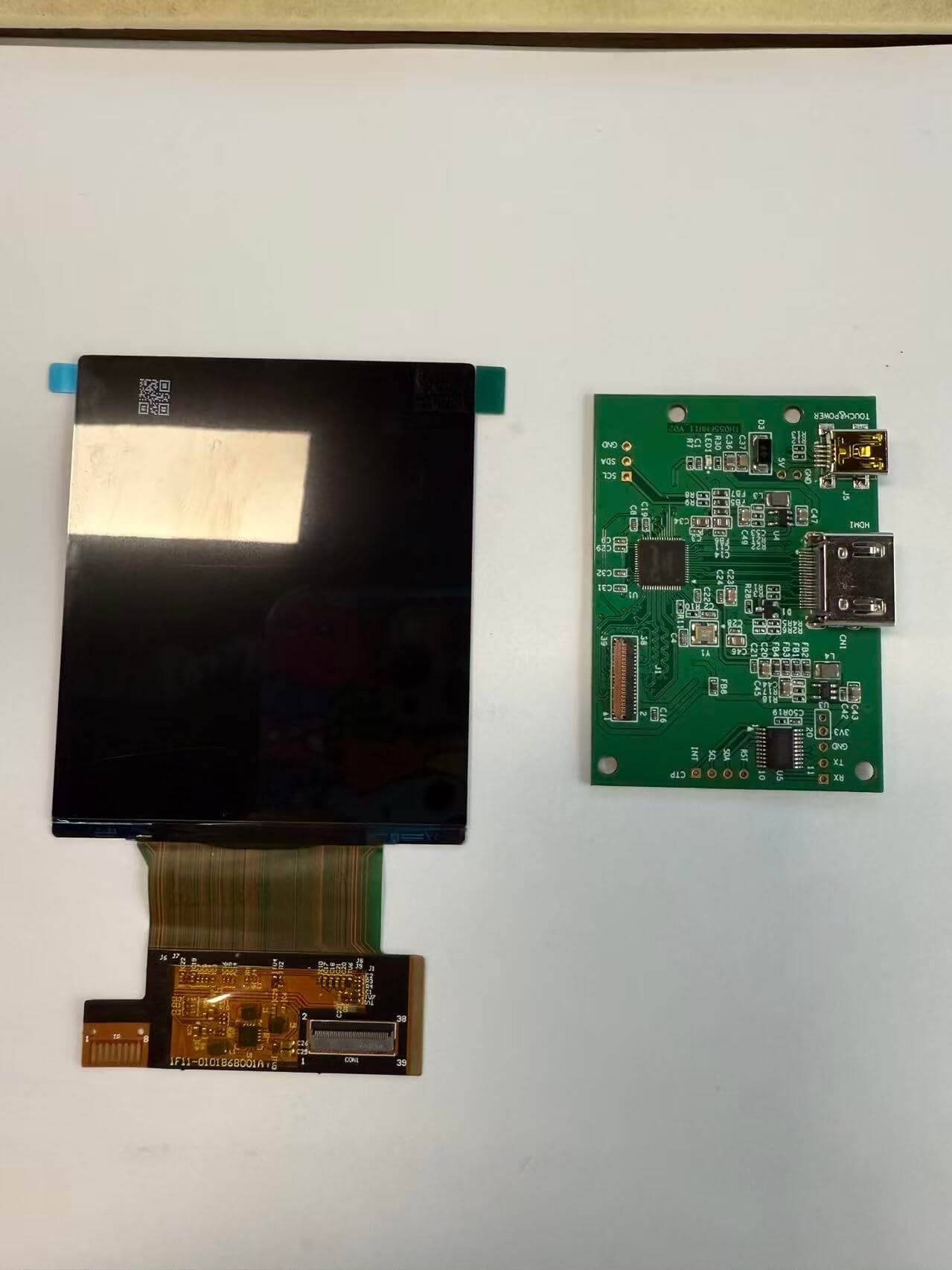

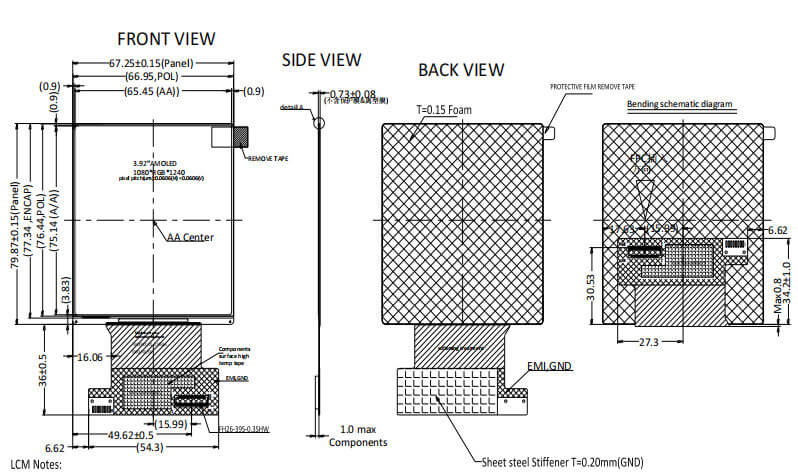

ET039SX01-G is a 3.92-inch AMOLED display module featuring a 1080×1240 resolution and MIPI interface. It adopts an AM-OLED display mode with an active area of 65.45(W)×75.14(H) mm and an ultra-slim outline dimension of 67.25(W)×79.87(H)×0.73(D) mm. ET039SX01-G provides 500 cd/m² display brightness and an all-direction viewing angle (L/R/U/D). It operates reliably across a temperature range of -20°C to 70°C and can be stored from -40°C to 80°C. The module does not include a touch panel.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
