3.9 Inch Stretched Bar Display Overview

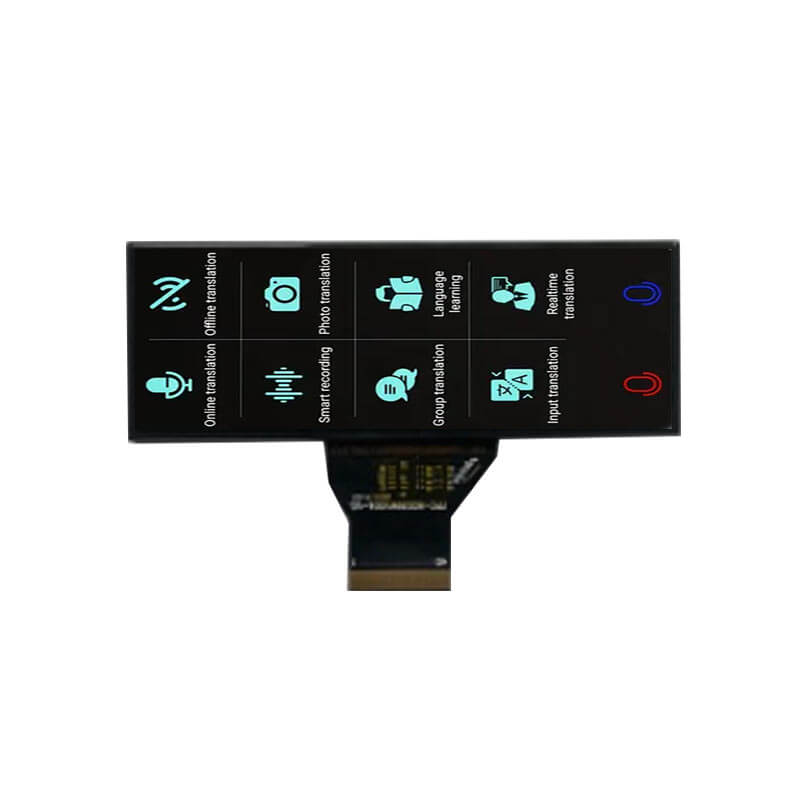

ET039BA01-HG is a 3.9 inch diagonal TFT-LCD display product featuring IPS technology and a transmissive display mode. ET039BA01-HG supports a display resolution of 800×216 with a stretched bar format, utilizing an RGB pixel arrangement. It features an active area of 95.24(W) × 24.4(H) mm and an outline dimension of 100.4(W) × 32.9(H) mm. The display adopts a TTL interface and can provide 1000 cd/m² high brightness, delivering excellent visibility for high-ambient-light environments. With an IPS wide viewing angle of 80/80/80/80 (L/R/U/D), it offers consistent image quality from multiple viewing directions. ET039BA01-HG supports an operating temperature range of -20~70°C and a storage temperature range of -30~80°C, making it suitable for industrial and outdoor display applications. This model is designed without touch functionality.

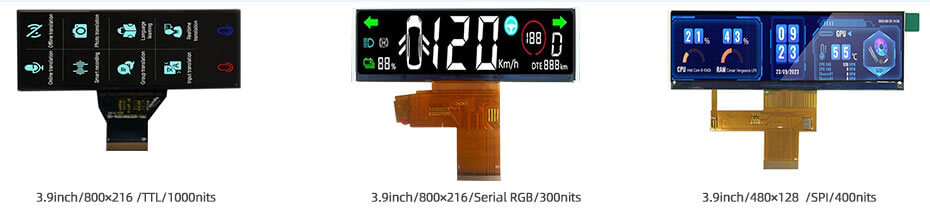

More 3.9 Inch Bar Displays For Reference
ET039BA01-HG (800x216, TTL, IPS, 1000nits, -20~70°C, 100.4×32.9mm)
ET039BA01-R (800x216, Serial RGB, IPS, 300nits, -20~70°C, 103.2×34.83mm)
ET039BA02-H (480x128, SPI, IPS, 400nits, -20~70°C, 102.46x34.4mm)
