0.48"-5" LCD Display (3.9")

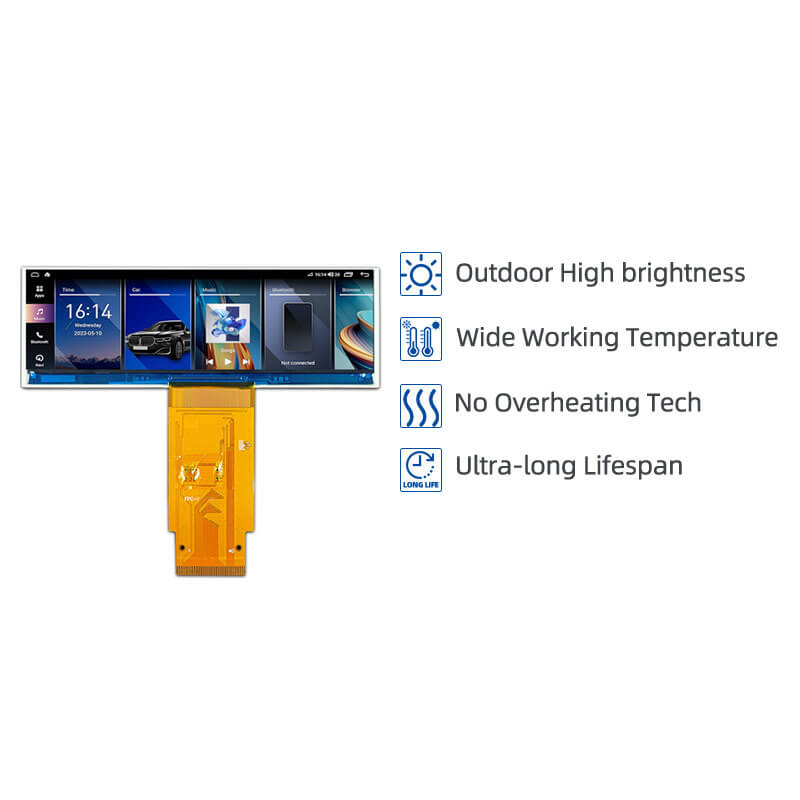

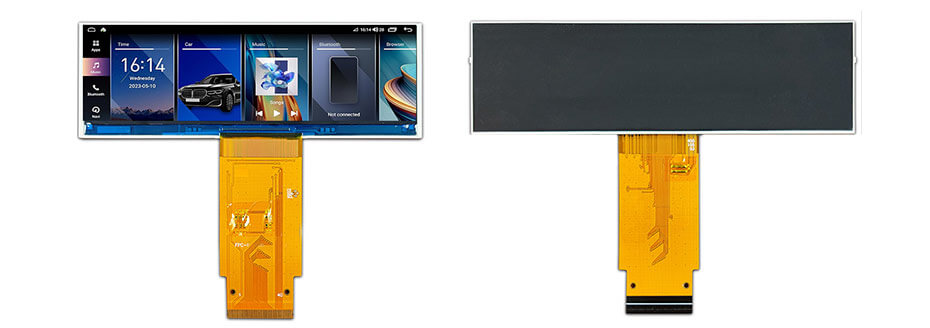

3.9 Inch High Brightness Display 800nits 480x128 Wide Temperature TTL IPS TFT LCD Display

Part No.:ET039WQ01-H
Size:3.9″ inch
Resolution:480x128
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:103.2x34.85mm
Active Area:95.04x25.34mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:800(Typ.)
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

3.9 Inch High Brightness LCD Display Overview
3.9 Inch High Brightness Display 800nits 480x128 Wide Temperature TTL IPS TFT LCD Display.

More 3.9 Inch High Brightness LCD Display For Reference
ET039WQ01-XFT (480x128, TTL, 850nits, -20~70°C, 95.04x25.34mm,CTP)
ET039WQ01-H (480x128, TTL, 800nits, -30~85°C, 103.2x34.85mm)
ET039WV01-HG (800x216, TTL, 1000nits, -20~70°C, 100.4x32.9mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
