0.48"-5" LCD Display (3.5")

3.5 Inch TFT LCD Display 640x480 TTL Interface High Brightness High-definition IPS LCD Panel

Part No.:ET035VG01-T
Size:3.5″ inch
Resolution:640x480
Panel Interface:TTL
Display mode:Transmissive

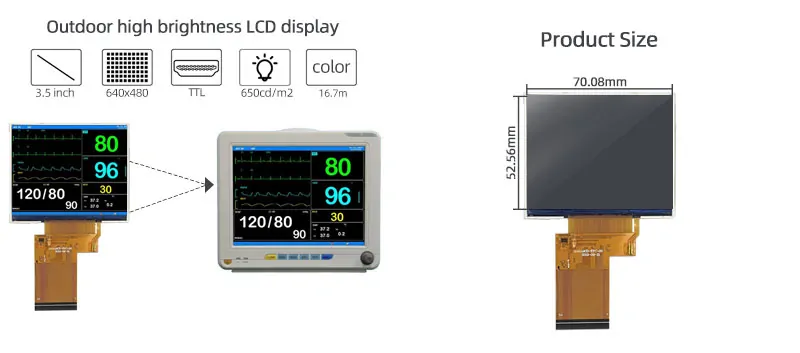

Outline Dimension:76.84x63.84mm
Active Area:70.08x52.56mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:650(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

ET035VG01-T Overview
3.5 Inch TFT LCD Display 640x480 TTL Interface High Brightness High-definition IPS LCD Panel.

Feature
Full Viewing Angle
High-definition
IPS

Application

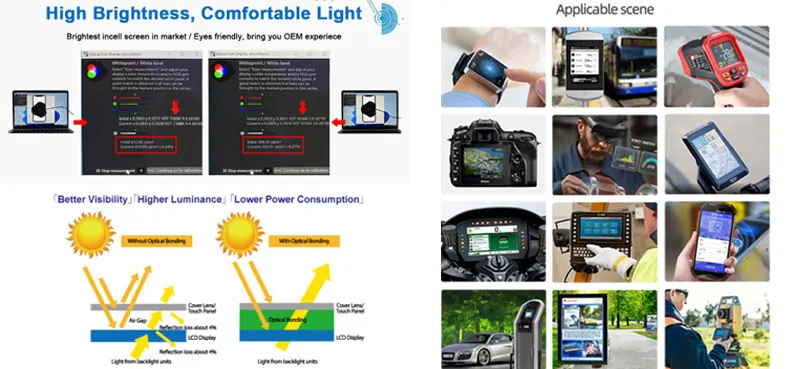

For Handheld & PDA,Industrial,Outdoor high brightness.

No specification brief is filled in!
