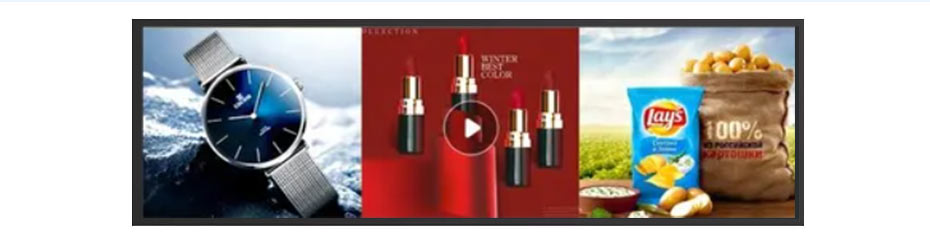

29 Inch Stretched Bar Display Overview
ET290BA01-YF is a 29-inch diagonal stretched bar IPS TFT-LCD display with a transmissive panel and LVDS interface. It supports a 1920 × 624 resolution across an active area of 698.4 (W) × 229.17 (H) mm and an outline dimension of 735 (W) × 266 (H) mm. This display delivers ultra-high brightness of 2000 cd/m² (typical) with wide viewing angles of 89°/89°/89°/89° (L/R/U/D). ET290BA01-YF operates in a temperature range of –20 °C to 70 °C and can be stored within the same range. It also supports touch functionality, making it ideal for high-brightness industrial and commercial applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
