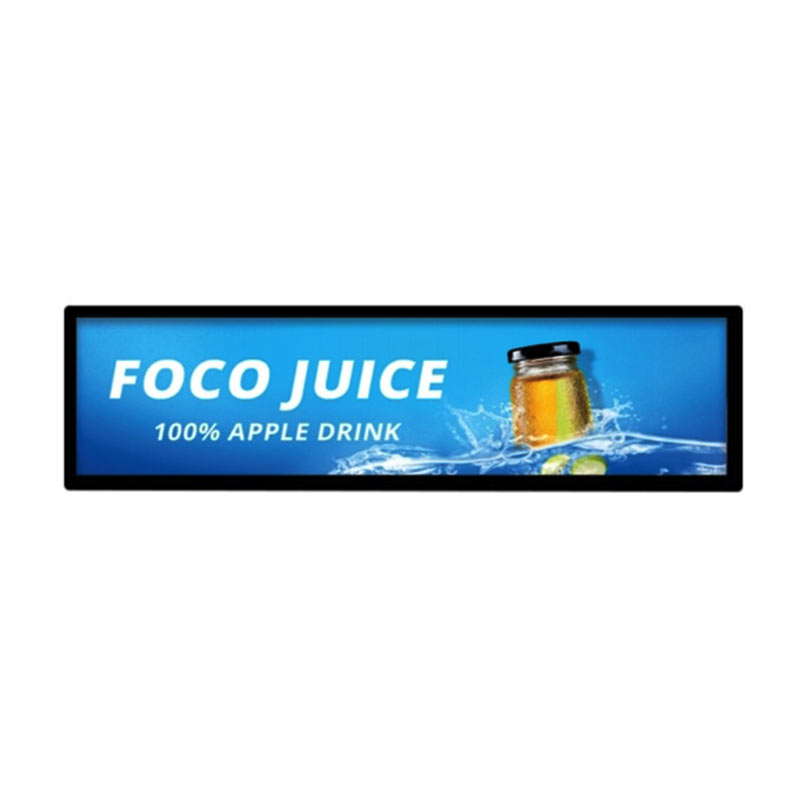

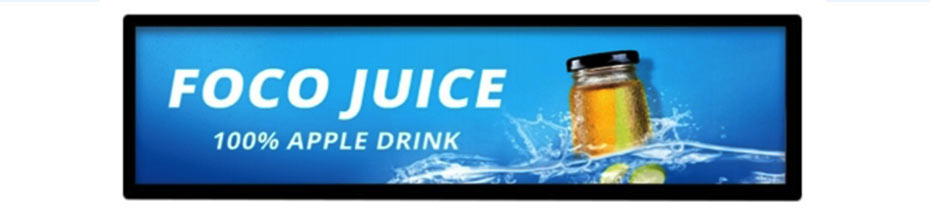

29.4 Inch Stretched Bar Display Overview

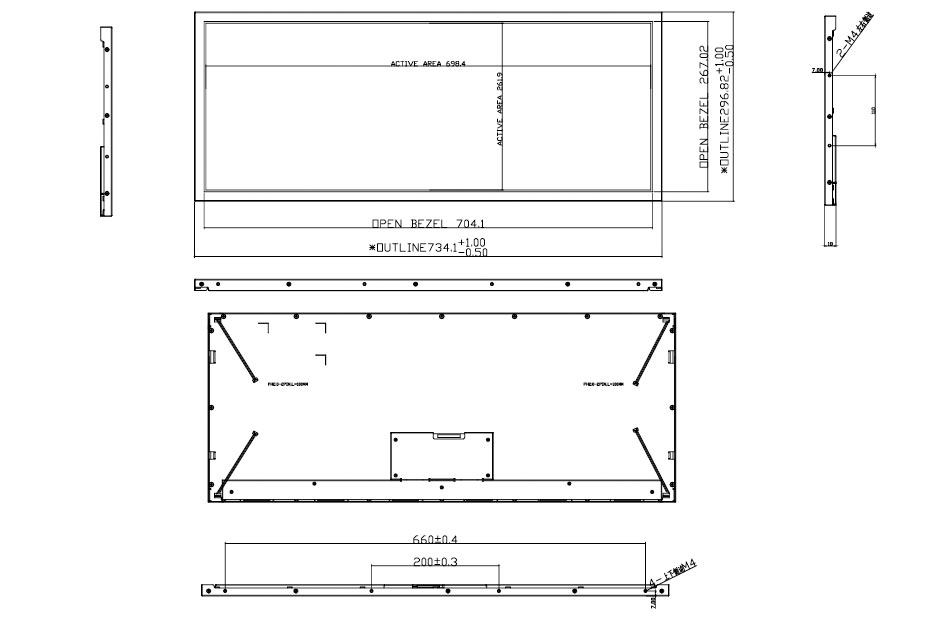

ET294BA01-VL is a 29.4-inch diagonal stretched bar IPS TFT-LCD display featuring a transmissive panel with dual-channel 8-bit LVDS interface. It supports a 1920 × 720 resolution across an active area of 698.4 (W) × 261.9 (H) mm and an outline dimension of 734.1 (W) × 296.82 (H) mm. The display delivers high brightness of 700 cd/m² (typical) with wide viewing angles of 89°/89°/89°/89° (L/R/U/D). ET294BA01-VL operates in temperatures from 0 °C to 50 °C and can be stored between –20 °C and 60 °C. It also supports touch functionality, suitable for bright industrial and commercial applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
