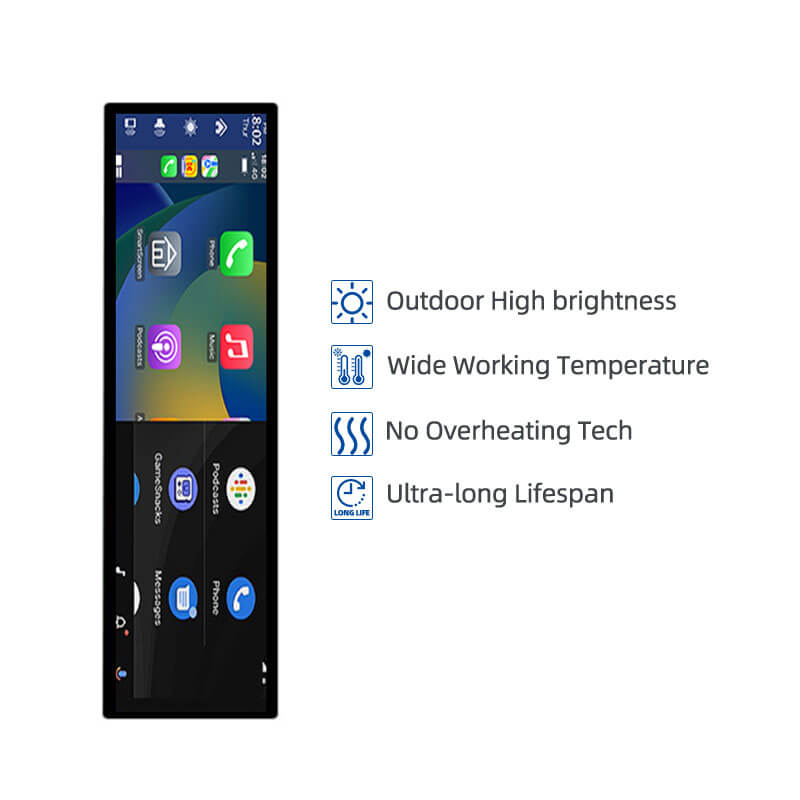

28 Inch High Brightness LCD Display Overview

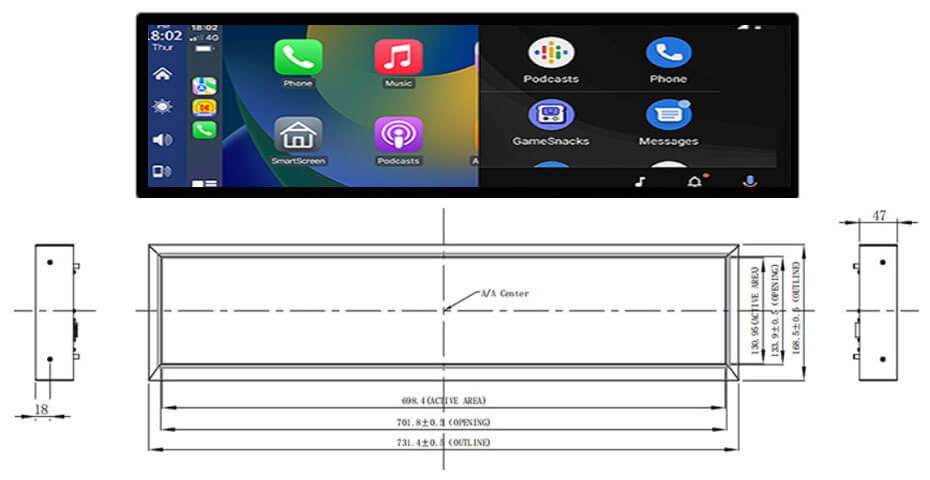

ET280BA01-RS is a 28-inch high-brightness IPS TFT LCD wide-temperature stretched bar display featuring a 1920×360 resolution and transmissive display mode. It uses an LVDS interface and delivers a typical brightness of 2000 cd/m² with ultra-wide viewing angles of 89° in all directions. The display offers an active area of 698.4 × 130.9 mm and an outline dimension of 736.2 × 157.5 mm, supporting operating temperatures from −30 to 80 °C and storage temperatures from −40 to 90 °C, without touch functionality.

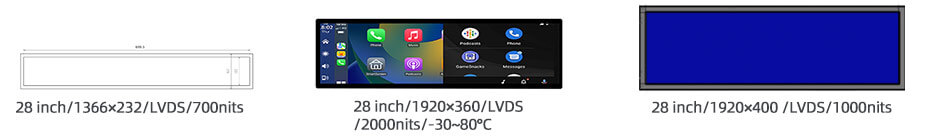

More 28 Inch High Brightness Display For Reference
ET280BA01-RX (1366x232, LVDS, 700nits, 0~50°C, 729.5x160mm)
ET280BA01-RS (1920x360, LVDS,2000nits, -30~80°C, 736.2x157.5mm)
ET280BA01-Z (1920x400, LVDS, 1000nits, 0~50°C, 735.5x179.1mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
