28 Inch High Brightness LCD Display Overview

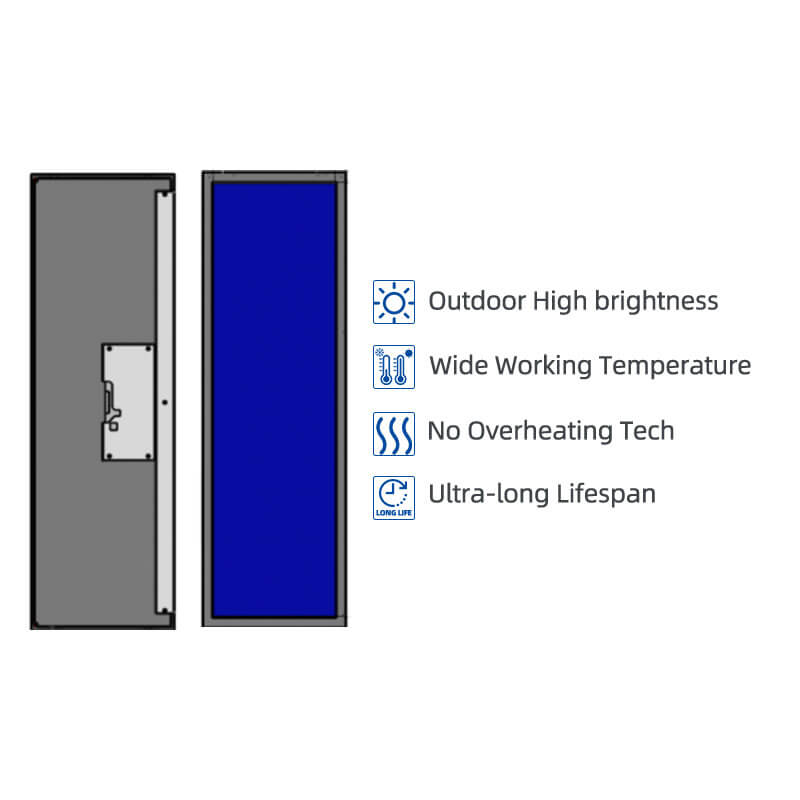

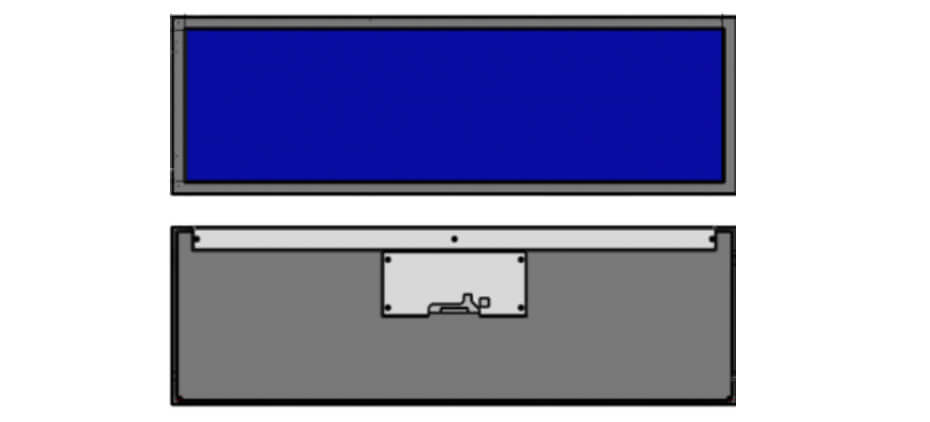

ET280BA01-Z is a 28 inch diagonal high brightness IPS stretched bar LCD display product, it adopts transmissive display mode. ET280BA01-Z supports display 1920×400 resolution with an ultra-wide stretched aspect ratio, featuring LVDS signal interface. It provides an active area of 698.4(W) × 145.6(H) mm and outline dimensions of 735.5(W) × 179.1(H) mm. ET280BA01-Z can deliver 1000 cd/m² typical brightness with wide viewing angles of 89/89/89/89 (L/R/U/D), ensuring excellent visual performance from all directions. The display operates within a temperature range of 0~50°C and supports storage temperatures from -20~60°C. This model is designed without touch functionality.
More 28 Inch High Brightness Display For Reference
ET280BA01-RX (1366x232, LVDS, 700nits, 0~50°C, 729.5x160mm)
ET280BA01-RS (1920x360, LVDS,2000nits, -30~80°C, 736.2x157.5mm)
ET280BA01-Z (1920x400, LVDS, 1000nits, 0~50°C, 735.5x179.1mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
