27 Inch High Brightness Display 1500nits IPS 3840x2160 LVDS TFT LCD Display

Part No.:ET270UH01-R
Size:27″ inch
Resolution:3840x2160
Panel Interface:LVDS
Display mode:Transmissive

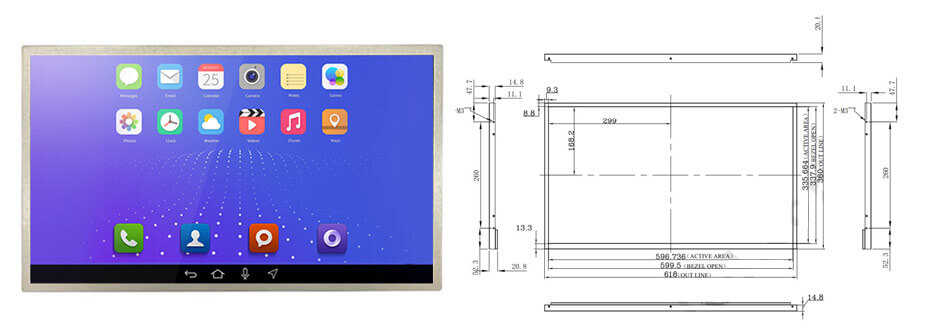

Outline Dimension:618x360mm
Active Area:596.736x355.664mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:1500(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

27 Inch High Brightness LCD Display Overview
27 Inch High Brightness Display 1500nits IPS 3840x2160 LVDS TFT LCD Display.

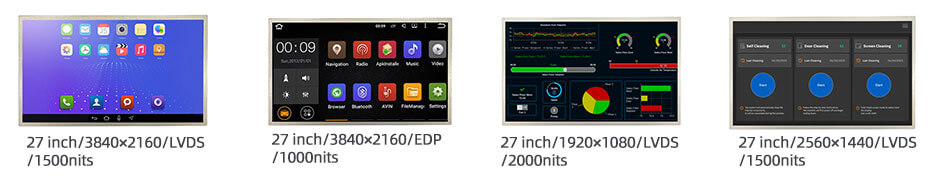

More 27 Inch High Brightness Display For Reference
ET270UH01-R (3840x2160, LVDS, 1500nits, 0~50°C, 618x360mm)
ET270UH02-R (3840x2160, eDP, 1000nits, 0~50°C, 628.8x367.1mm)
ET270FH01-R (1920x1080, LVDS, 2000nits, -20~70°C, 618x360mm)
ET270WH01-R (2560x1440, LVDS, 1500nits, 0~50°C, 608.8x355.13mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
