LCD above 17.3" (23.8")

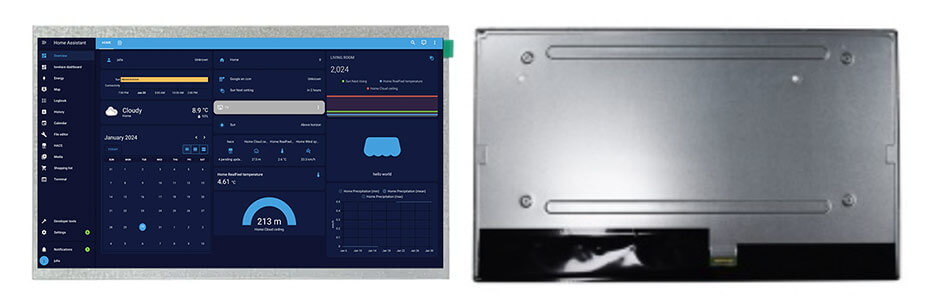

23.8 Inch Wide Temperature LCD Display 3840×2160 eDP -40°C to 50°C High Brightness 600nits TFT LCD Display

  • Part No.:ET238UH01-YX
  • Size:23.8″ inch
  • Resolution:3840x2160
  • Panel Interface:eDP
  • Display mode:Transmissive
  • Outline Dimension:545x323.4mm
  • Active Area:527.04x296.46mm
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness(cd/m2):600nits
  • Operation / Storage Temp:-40~50°C / -40~60°C
  • Touch:no


23.8 Inch Wide Temperature LCD Display Overview
23.8 Inch Wide Temperature LCD Display 3840×2160 eDP -40°C to 50°C High Brightness 600nits TFT LCD Display.


More 23.8 Inch Wide Temperature Displays For Reference
ET238FH01-GL (LCD
, 1920×1080, LVDS, IPS, 1000nits, -30~80°C, 543×317.4mm)
ET238FH01-ZX (LCD, 1920×1080, LVDS, IPS, 2000nits, -30~75°C, 555.8×325.3mm)
ET238UH01-YX (LCD, 3840×2160, eDP, IPS, 600nits, -40~50°C, 545×323.4mm)
