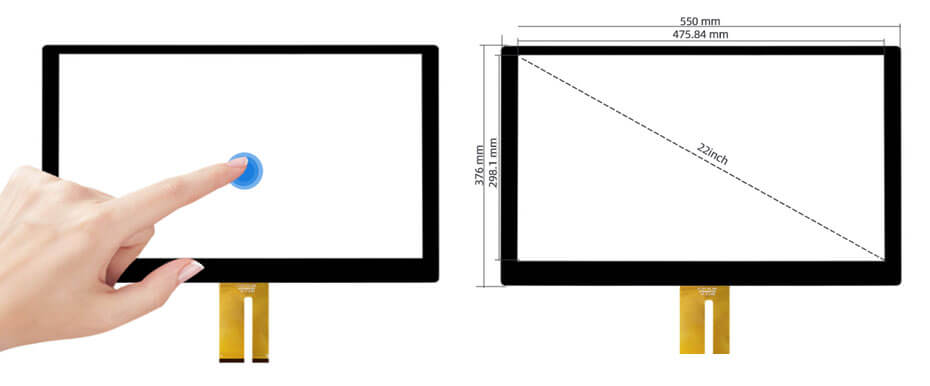

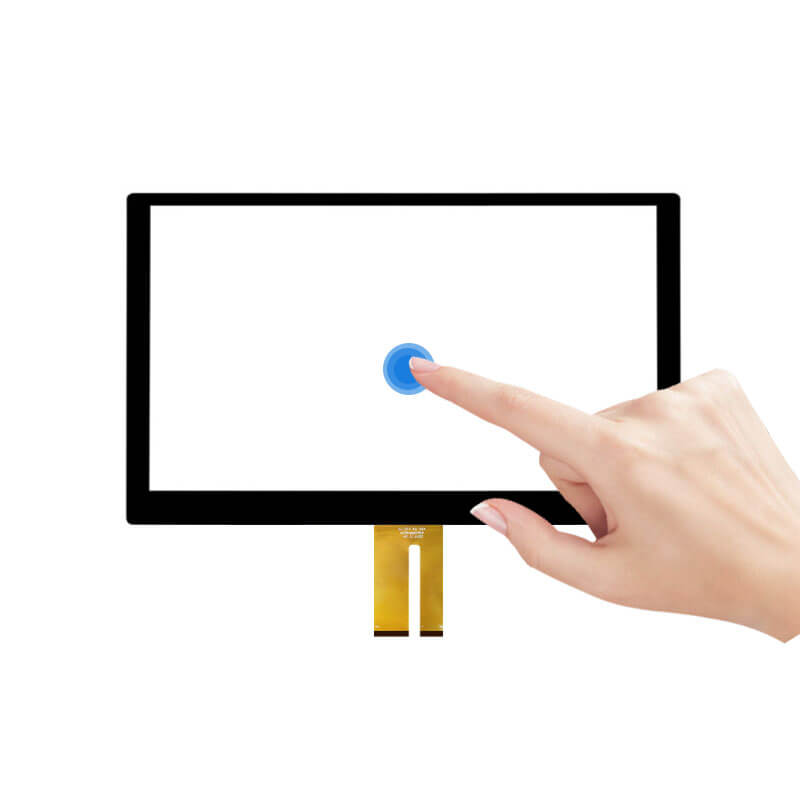

22 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 475.84x298.1 mm
Outline Dim.: 550x376 mm
Operation Temperature: -20~60 °C
Storage Temperature: -30~70 °C

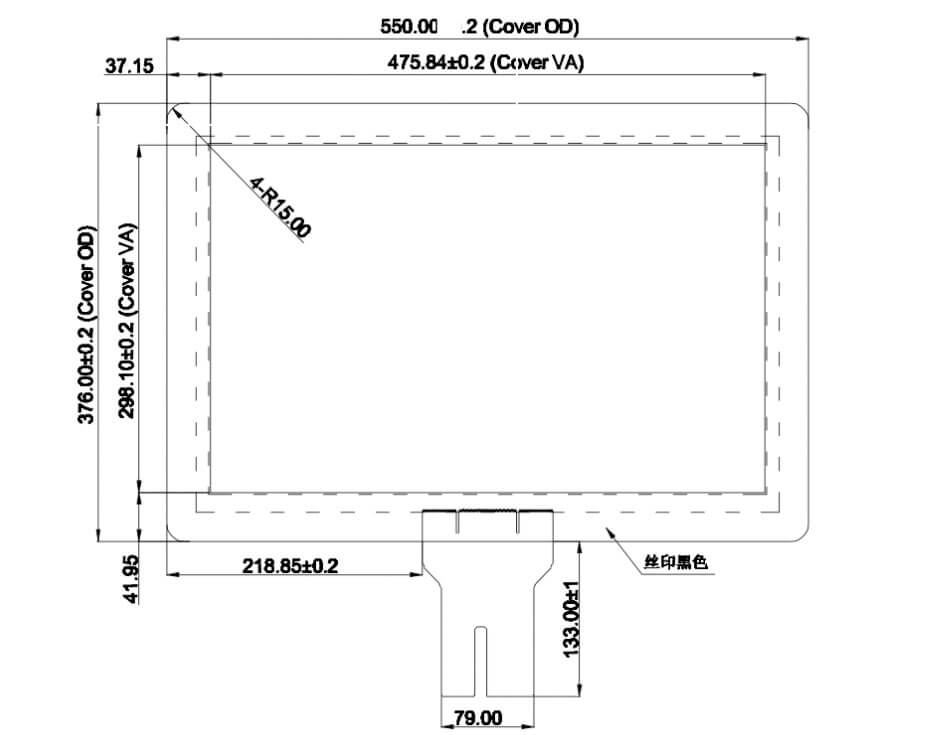

22 Inch Capacitive Touch Screen Drawing
The touch screens can be matched and integrated by all kinds of display panels
SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
PRODUCTION AND MANUFACTURING
APPLICATIONS
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
