21.5 Inch High Brightness LCD Display Overview

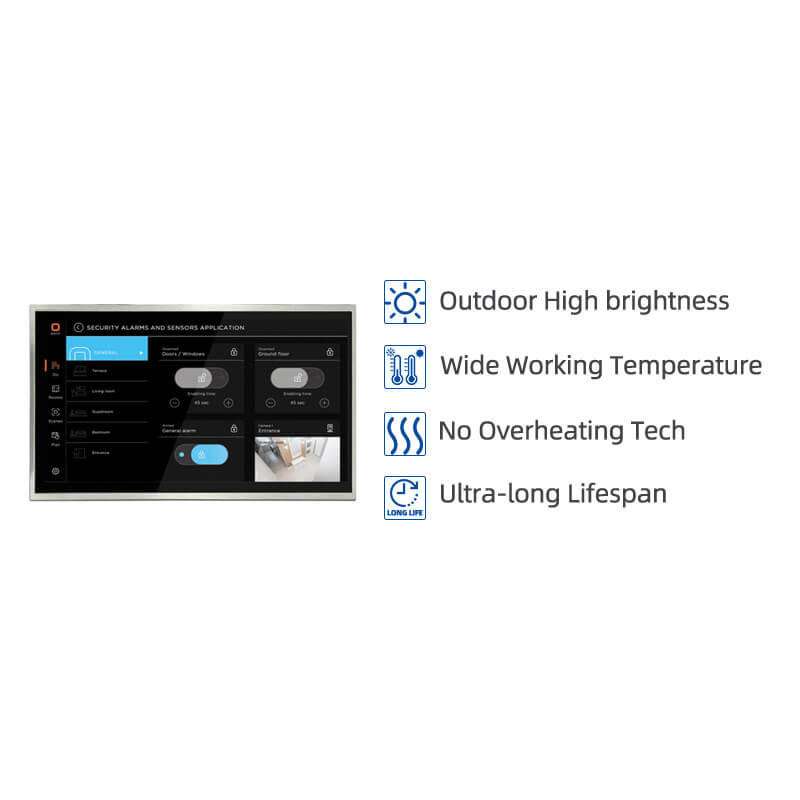

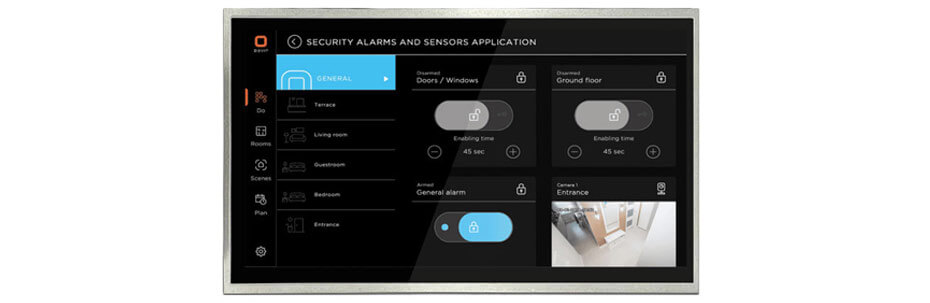

ET215FH03-T is a 21.5-inch IPS TFT LCD display with a 1920×1080 (FHD) resolution and transmissive display mode. It features an LVDS interface and provides a typical brightness of 1000 cd/m² with ultra-wide viewing angles of 89° in all directions. The display has an active area of 476.64 × 268.11 mm and an outline dimension of 495.6 × 292.4 mm, supporting operating temperatures from −20 to 70 °C and storage temperatures from −30 to 80 °C, without touch functionality.

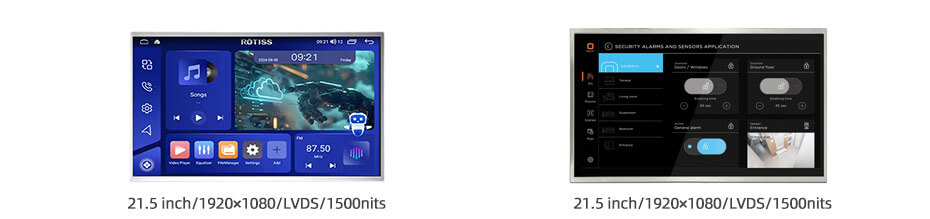

More 21.5 Inch High Brightness Display For Reference
ET215FH01-R (1920x1080, LVDS, 2500nits, -20~70°C, 495.2x291.5mm)
ET215FH03-T (1920x1080, LVDS, 1000nits, -20~70°C, 495.6x292.4mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
