21.3 Inch Stretched Bar Display Overview

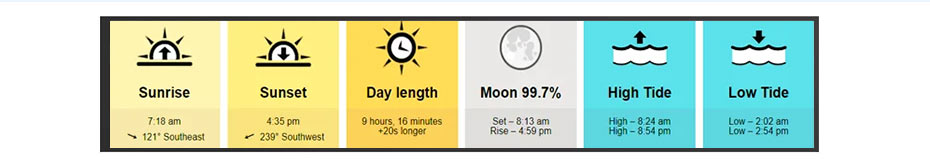

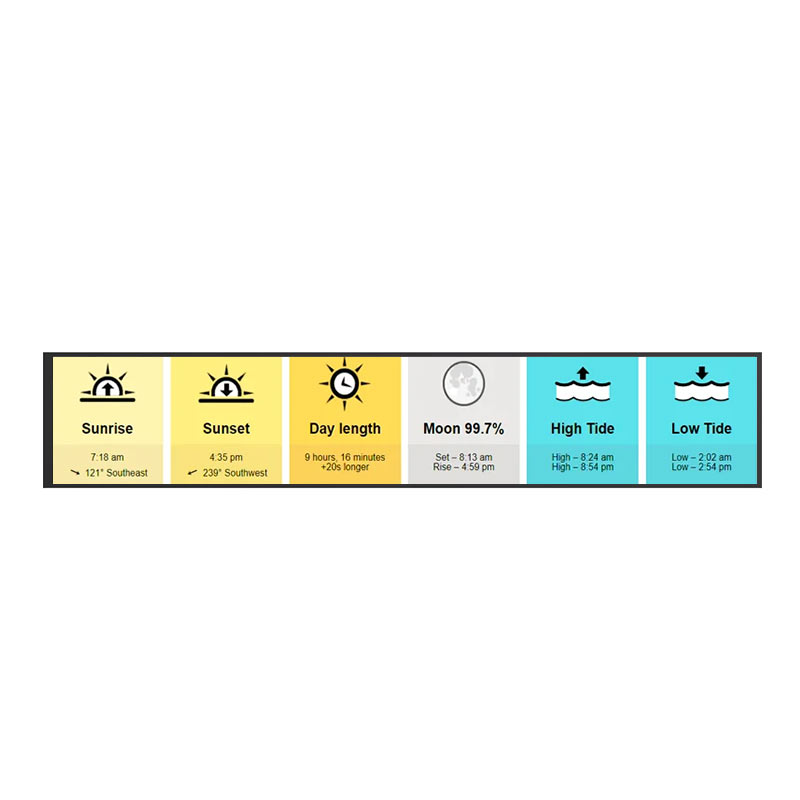

ET213BA02-YF is a 21.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 540 resolution, providing a high-brightness wide-format display ideal for horizontal information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 521.4 (W) × 146.6 (H) mm and an outline dimension of 541 (W) × 167 (H) mm, making it suitable for elongated and space-efficient system designs. ET213BA02-YF adopts an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring clear visibility in indoor and moderately bright environments. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast from virtually any viewing position. The module is designed for reliable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model supports touch functionality, making it ideal for interactive industrial control panels, transportation displays, digital signage, and other wide-format embedded display solutions.
More 21.3 Inch Bar Displays For Reference
ET213BA01-YF (1920×317, LVDS, TN, 1000nits, 0~50°C, 570.62x124.6mm)
ET213BA02-YF (1920×540, LVDS, IPS, 500nits, 0~50°C, 541x167mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
