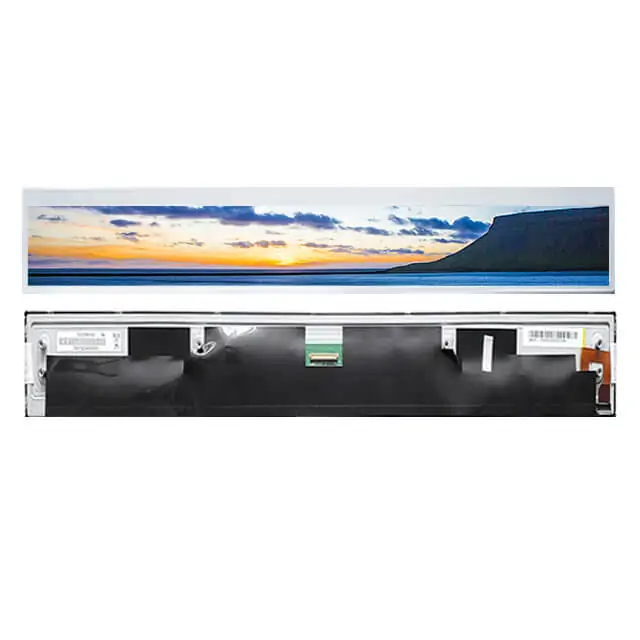

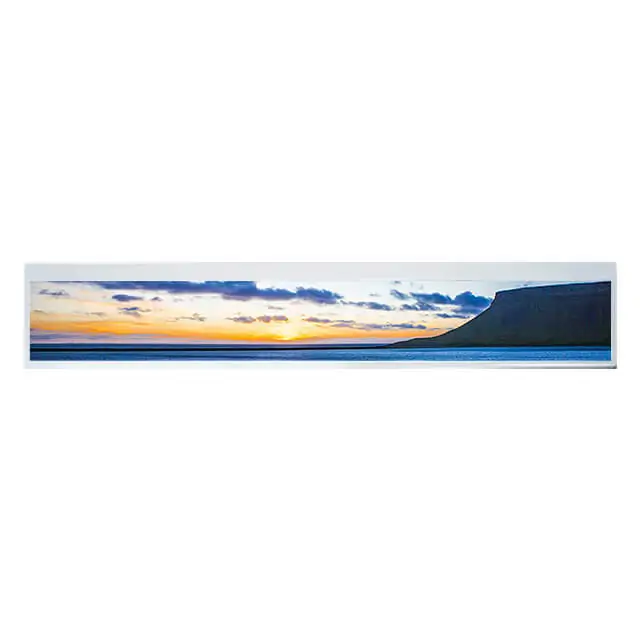

20.9 inch TFT 1920x132 IPS LCD Display 40 pins LVDS interface for advertising

Product size

20.9-inch  (Native bar)

Type

a-Si TFT-LCD , LCM

Pixel Format

1920(RGB)×132  92PPI

Configuration

RGB Vertical Stripe

Active Area

529.416(H)×36.3974(V) mm

Outline Dim.

542.4(H)×54.7(V) mm

Bezel Area

-

Treatment

Antiglare (Haze 25%)

Luminance

300 cd/m² (Typ.)

Contrast Ratio

1200:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

8 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

HADS, Normally Black, Transmissive

Support Color

16.7M   73% NTSC

Light Source

WLED , 30K hours , With LED Driver

Weight

500g (Typ.)

Designed For

Digital Signage Stretched Bar LCD

Frequency

60Hz

Touch Panel

Without

Interface Type

LVDS (2 ch, 8-bit) 40 pins Connector

Power Supply

12.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
