2 Inch High Brightness Display 600nits 480x360 MIPI TFT LCD Display For Cycling Computer Bike Display

Part No.:ET020HV10-VR
Size:2″ inch
Resolution:480x360
Panel Interface:MIPI
Display mode:Transmissive

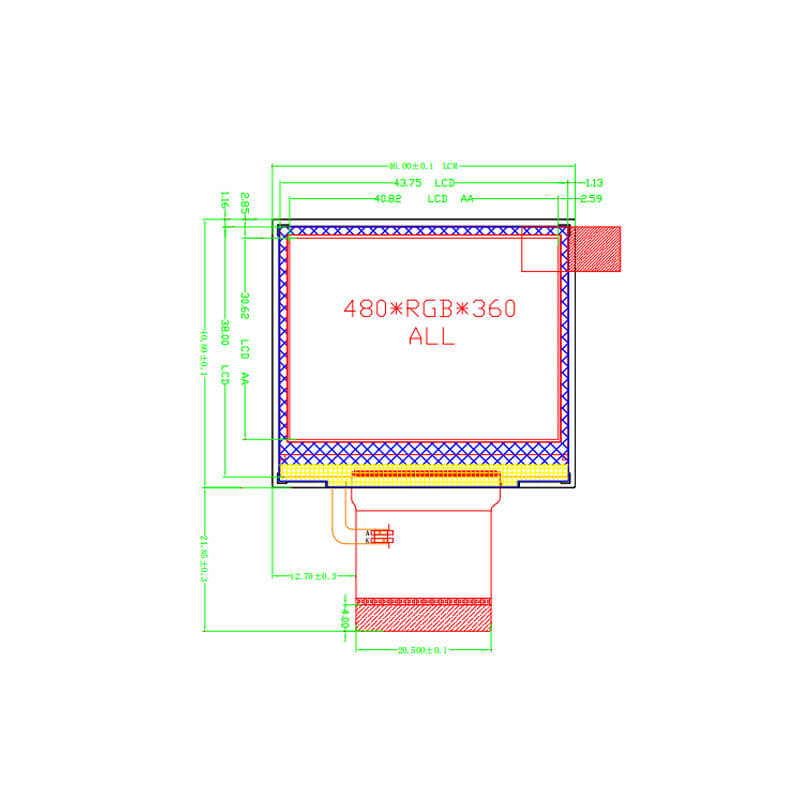

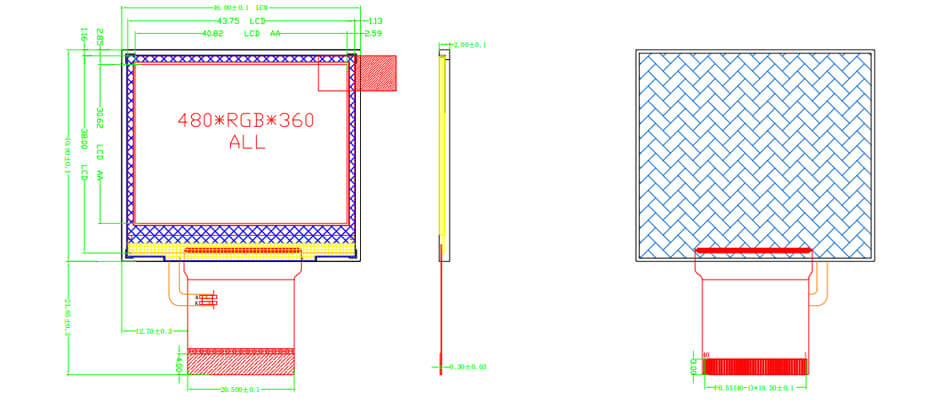

Outline Dimension:46.00x40.80x2.0mm
Active Area:40.82x30.61mm
Viewing Angle L/R/U/D:All o’clock
Brightness（cd/m2）:600nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2 Inch High Brightness Display 600nits 480x360 MIPI TFT LCD Display For Cycling Computer Bike Display Overview

ET020HV10-VR is a 2.0-inch TFT-LCD display featuring transmissive mode with 480×360 resolution and MIPI interface, designed for cycling computer and bike display applications. It offers an active area of 40.82(W) × 30.61(H) mm within a compact outline size of 46.00(W) × 40.80(H) × 2.0(D) mm. With 600 cd/m² high brightness and all-viewing-angle technology, it ensures clear visibility under outdoor sunlight conditions. Supporting an operating temperature range of -20°C to 70°C and storage temperature of -30°C to 80°C, ET020HV10-VR provides reliable performance and durability for rugged outdoor environments.
