2.9 Inch Black & White E-Paper Display 296×128 SPI Electronic Ink Display Module

2.9 Inch Black & White E-Paper Display 296×128 SPI Electronic Ink Display Module Overview

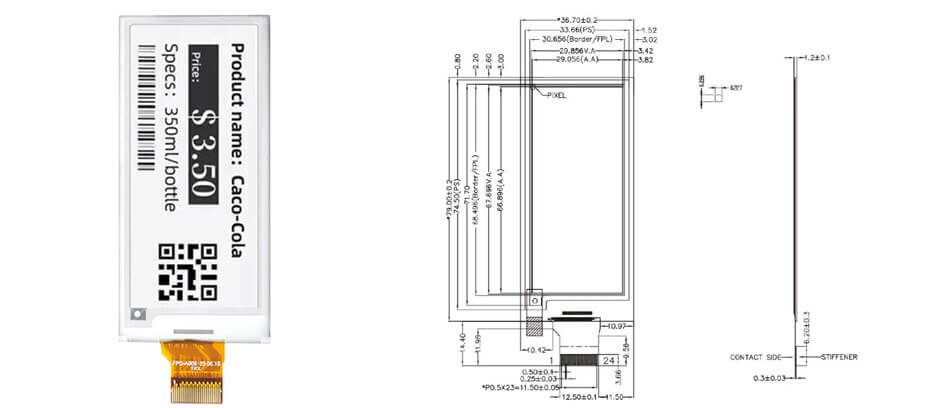

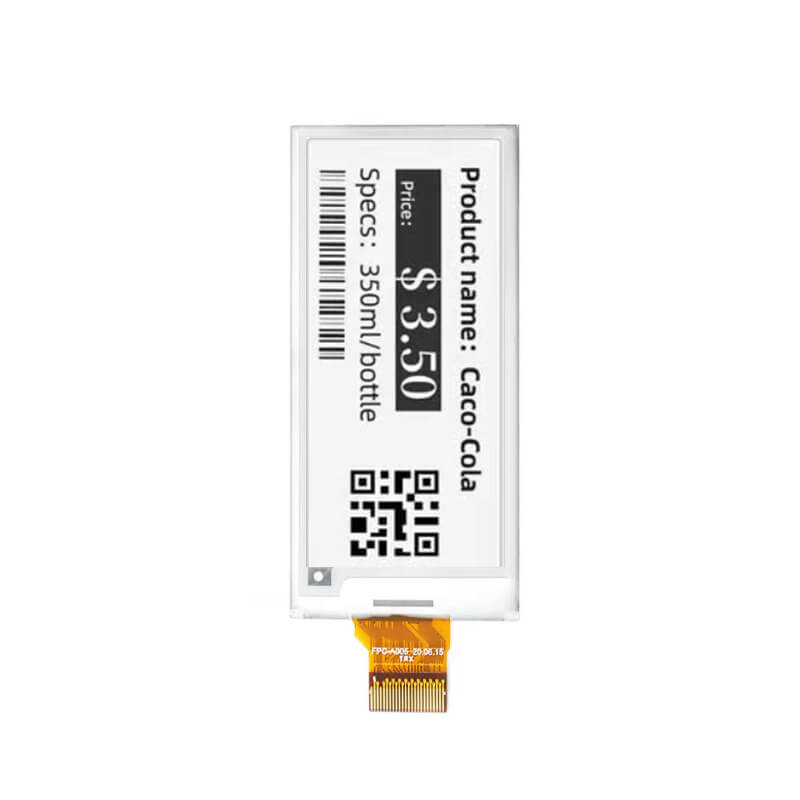

ET029EP01-Y is a 2.9 inch diagonal black and white E-Paper (EPD) display module utilizing electronic ink technology for ultra-low power consumption and excellent readability under ambient light. ET029EP01-Y supports a 296×128 resolution with a wide aspect ratio, delivering sharp text, barcodes, QR codes, and graphics for applications such as electronic shelf labels, smart tags, industrial instruments, and IoT devices. The module adopts an SPI interface for easy system integration and efficient data communication. It features an active area of 66.896(W) × 29.056(H) mm, an outline dimension of 79(W) × 36.7(H) × 1.2(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET029EP01-Y provides a paper-like viewing experience with high contrast, a wide viewing angle, and bistable display performance, making it an ideal solution for battery-powered electronic paper applications requiring long service life and minimal power consumption.

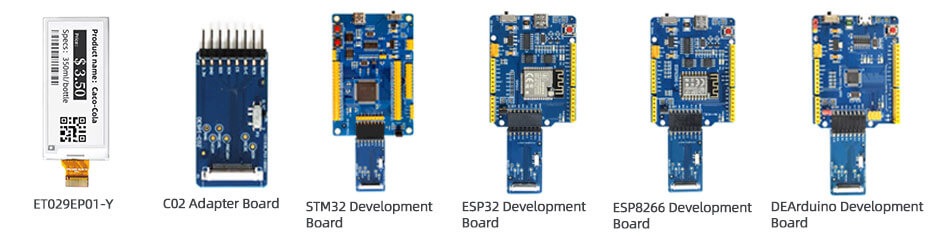

2.9 Inch E Ink Display Solution For Reference
ET029EP01-Y
C02 Adapter Board
STM32 Development Board
ESP32 Development Board
ESP8266 Development Board
DEArduino Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
