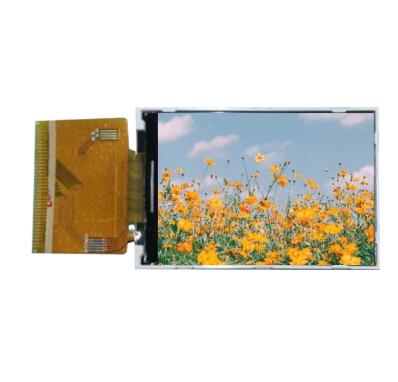

2.6" portrait tft lcd module small size 240*320 lcd display mcu interface support ILI934 drive ic panel

  • Part No.:ET026QV01-D
  • Size:3″ inch
  • Resolution:240*320
  • Panel Interface:
  • Display mode:TN
  • Outline Dimension:44.2(H) x 62(V) x 2.55(D)
  • Active Area:39.6(H) x 52.8(V)
  • Viewing Angle L/R/U/D:50 45 50 50
  • Brightness(cd/m2):300cd/m2
  • Operation / Storage Temp:-20/70°C / -30/80°C
  • Touch:no

Items
Specifications
Display area(AA)
39.6(W) x52.8(H)mm
Driver element
TFT active matrix
Display colors
262K
Number of pixels
240 x RGB x 320
Pixel arrangement
RGB vertical stripe
Pixel pitch
0.141(H)*0.141(V)mm
Viewing angle
12 O’clock
Controller IC
ILI9341
LCM Interface
MCU 8/16bit
Display mode
Transmissive/Normally White
Operating temperature
-20~+70
Storage temperature
-30~+80
Module size
44.2(H) x 62(V) x 2.55(D)mm
Brightness
300cd/m2
Contrast Ratio
500:1
