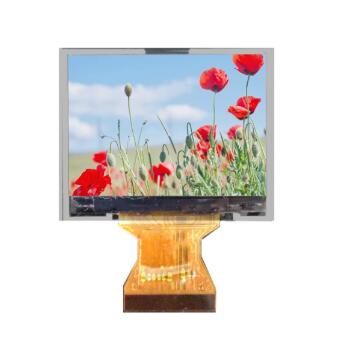

2.4 inch tft lcd module display panel with 240*320 resolution MCU interface for attendance machine and driving recorder

  • Part No.:ET024QV01-D
  • Size:2″ inch
  • Resolution:240x320
  • Panel Interface:
  • Display mode:TN
  • Outline Dimension:42.72(H)x60.26(V)x2.20(D)
  • Active Area:36.72(H)x48.96(V)
  • Viewing Angle L/R/U/D:50 20 45 45
  • Brightness(cd/m2):200cd/m2
  • Operation / Storage Temp:-20/70°C / -30/80°C
  • Touch:no

oem 2.4 inch tft lcd module display panel with 240*320 resolution MCU interface for attendance machine and driving recorder

Model

ET024QV01-D

Resolution

320*240

Brightness

Ordinary

Module size

46.00H*40.90V*2.53D(mm)

Screen size

2.0"

Using the environment

Outdoor

Display mode

Static display

According to the color

Full color

Pixel

320*240

Pixel diameter

8(mm)
