2.4 Inch High Brightness LCD Display Overview

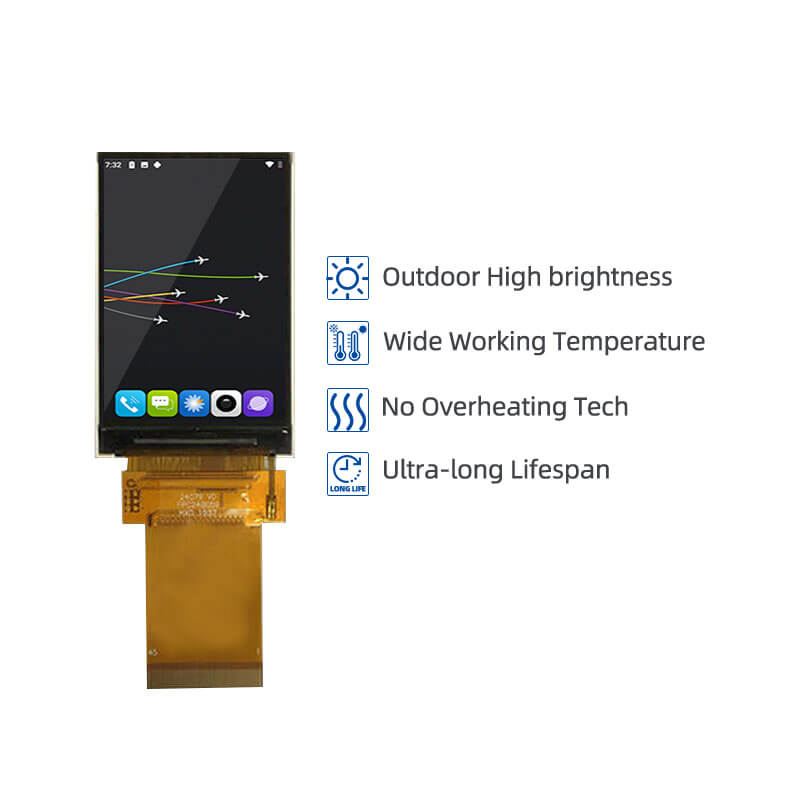

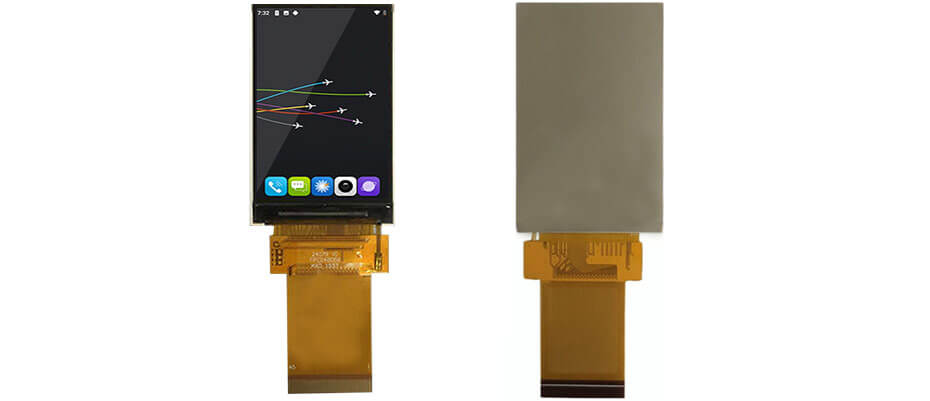

ET024HV20-K is a 2.4-inch diagonal high-brightness IPS TFT LCD display designed for handheld PDAs. It features a 320×480 resolution with TTL interface and transmissive display mode. The active area measures 33.12(W)×49.68(H) mm, with an outline size of 39.52×60.68 mm. ET024HV20-K delivers a typical brightness of 750 cd/m², 80° viewing angles in all directions (L/R/U/D), and operates across –20 °C to 70 °C (storage –30 °C to 80 °C). Touch functionality is not supported.
More 2.4 Inch High Brightness LCD Display For Reference
ET024VG10-T (240x320, CPU/RGB/SPI ,1500nits, -20~70°C, 42.92x60.26mm)
ET024HV30-K (320x480, MIPI ,750nits, -20~70°C, 39.52x60.68mm)
ET024HV30-KT (320x480, MIPI ,700nits, -20~70°C, 44.52x69.88mm, CTP)
ET024HV20-K (320x480, TTL, 700nits, -20~70°C, 39.52x60.68mm)
ET024HV20-KT (320x480, TTL ,700nits, -20~70°C, 44.52x69.88mm,CTP)
ET024VG30-K (480x640, MIPI, 800nits, -30~80°C, 42.92x60.26mm)
