2.13 Inch Quad-Color E-Paper Display 250×122 SPI EINK Black White Red Yellow Electronic Ink Screen

2.13 Inch Quad-Color E-Paper Display 250×122 SPI EINK Black White Red Yellow Electronic Ink Screen Overview

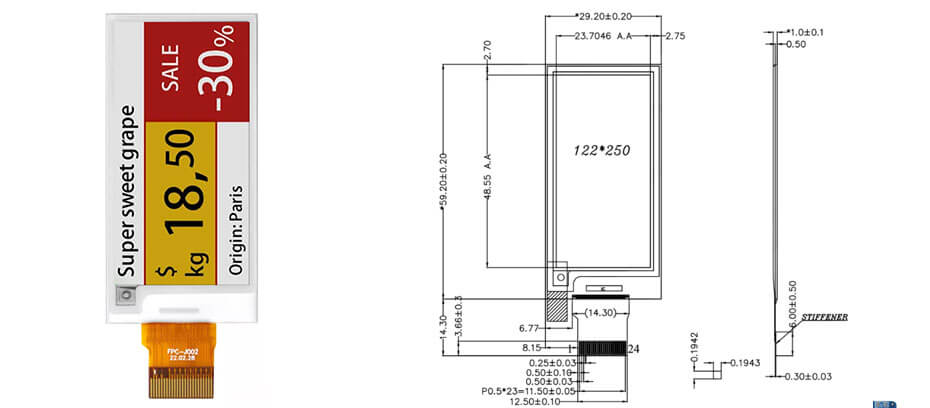

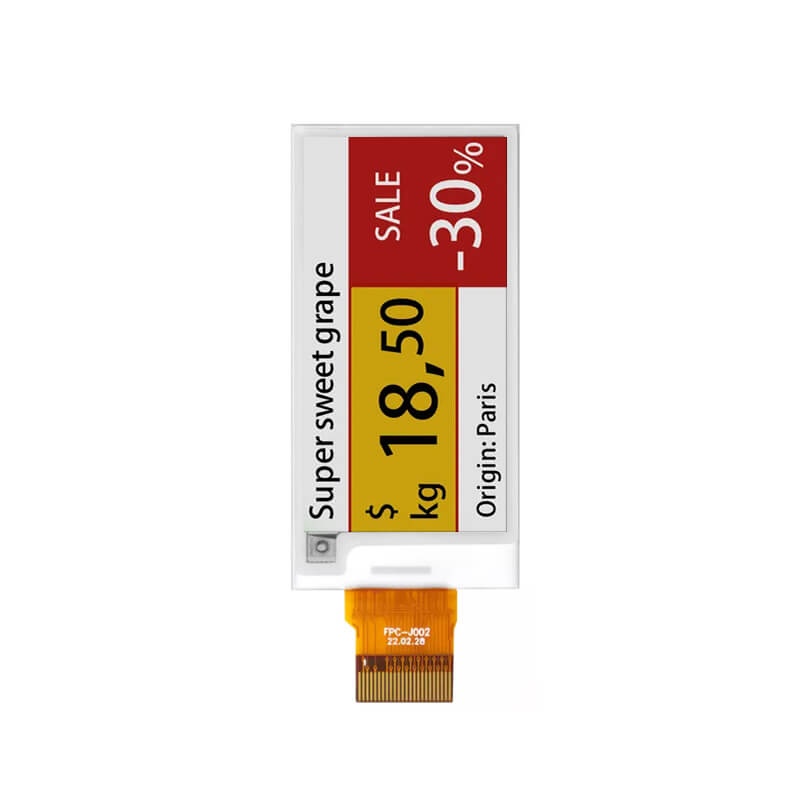

ET021EP07-J is a 2.13 inch diagonal quad-color E-Paper (EPD) display module featuring advanced electronic ink technology with black, white, red, and yellow color support for rich and energy-efficient content presentation. ET021EP07-J supports a 250×122 resolution with a compact design, delivering clear text, icons, symbols, and multi-color graphics for applications such as electronic shelf labels, smart tags, logistics labels, industrial instruments, and IoT devices. The module adopts an SPI interface for easy system integration and reliable data communication. It features an active area of 48.55(W) × 23.7046(H) mm, an outline dimension of 59.2(W) × 29.2(H) × 1.0(D) mm, and operates reliably within a 0°C to 40°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET021EP07-J provides a paper-like viewing experience with high contrast, wide viewing angle performance, and bistable display characteristics, making it an ideal display solution for battery-powered electronic paper applications requiring vivid color content, long service life, and ultra-low power consumption.

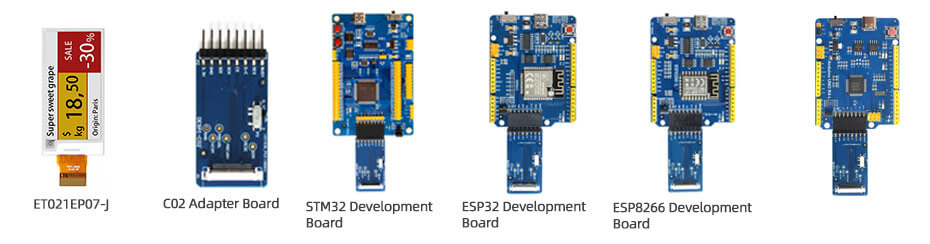

2.13 Inch E Ink Display Solution For Reference
ET021EP07-J
C02 Adapter Board
STM32 Development Board
ESP32 Development Board
ESP8266 Development Board
Arduino Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
