2.1 Inch High Brightness LCD Display Overview

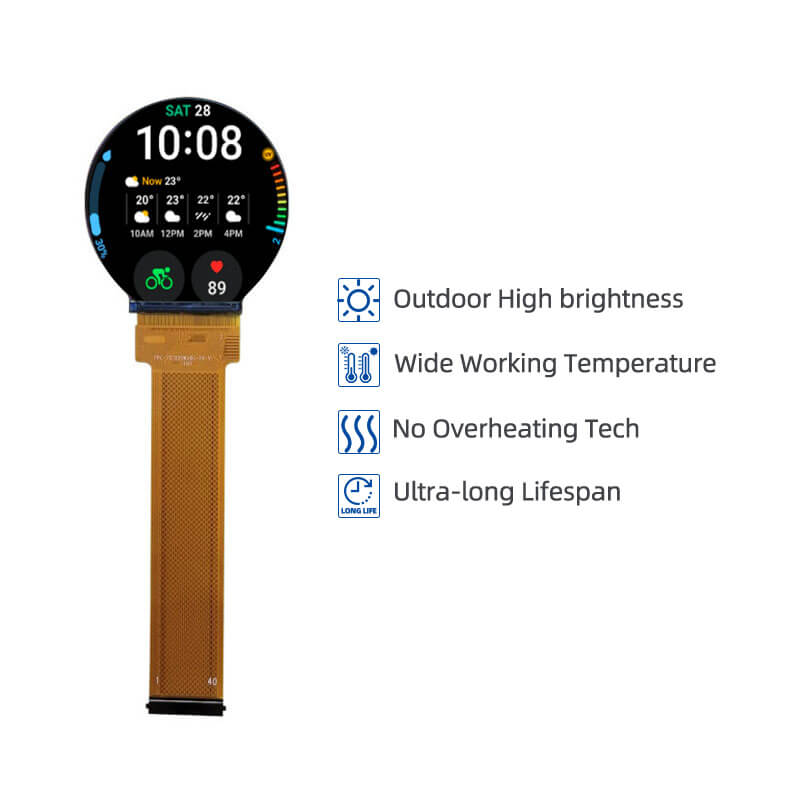

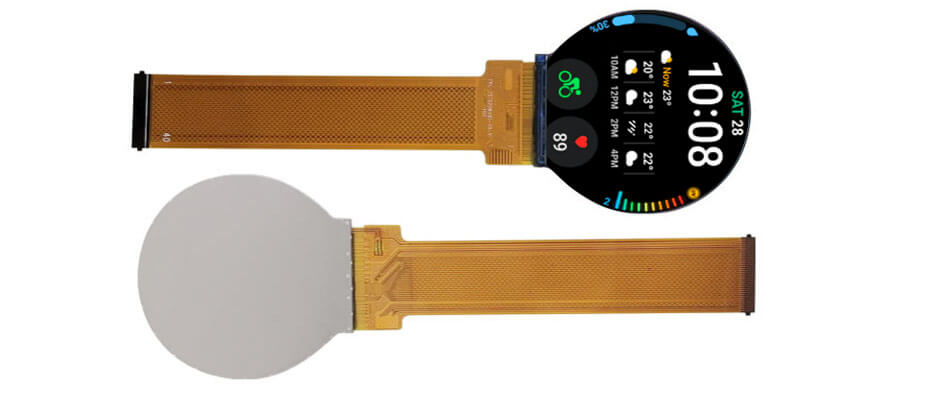

ET021WV01-TS is a 2.1-inch diagonal high-brightness IPS TFT LCD display designed for handheld PDAs. It features a 480×480 resolution with a TTL interface and a transmissive display mode. The active area measures 53.28(W)×53.28(H) mm, with an outline size of 56.18×59.71 mm. ET021WV01-TS delivers a typical brightness of 1000 cd/m², viewing angles of 80°/80°/80°/80° (L/R/U/D), and operates over a temperature range of –20 °C to 70 °C (storage –30 °C to 80 °C). Touch functionality is not included.
More 2.1 Inch High Brightness LCD Display For Reference
ET021WV01-TS (480x480, TTL, 1000nits, -20~70°C, 56.18×59.71mm)
ET021WV01-Z (480x480, MIPI, 1000nits, -20~70°C, 56.18x59.71mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
