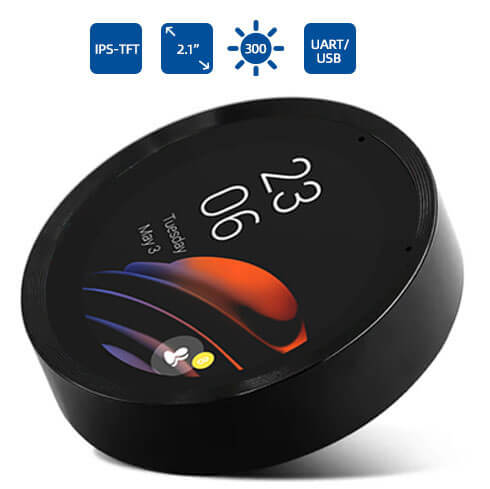

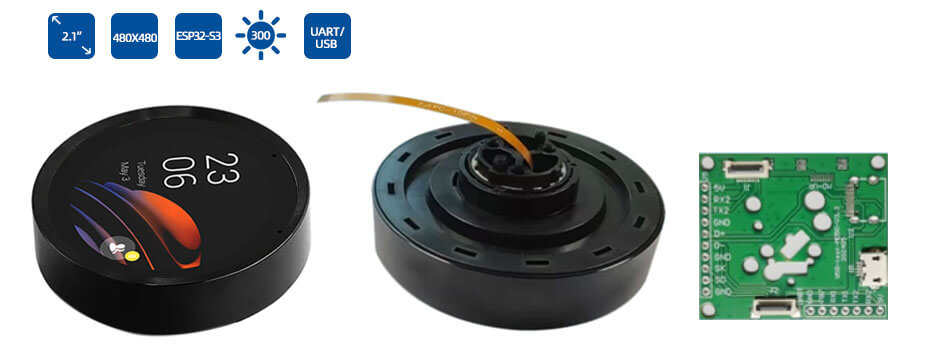

2.1 Inch 480×480 Round TFT Knob Touch Display ESP32 Rotary Encoder Arduino LVGL WIFI BLe Uart Smart Module

2.1 inch 480x480 Round TFT Knob Display
Rotary Encoder Arduino LVGL WIFl BLe Uart smart Module

2.1 Inch 480×480 Round TFT Knob Touch Display ESP32 Rotary Encoder Arduino LVGL WIFI BLe Uart Smart Module
I) Outline Dimension: Ф 80 Round
II) Interaction Method: Rotate, Press and Touch
III) Shell Color: Black/White/Silver/Customized
1) OS: RTOS
2) CPU: ESP32-S3 240Mhz
3) RAM: 8MB
4) Flash: 16MB
5) Interface: UART/USB
6) Wireless: Support 2.4GHz Wi-Fi、BLE 5、BLE Mesh
7) Size: 2.1 Inch IPS TFT
8) Resolution: 480×480 Round
9) Brightness: 300 cd/m²
A) Touch Screen: Mult-Point Capacitive Touch
B) Platform:  Arduino ESP-IDF  LVGL

How you drive your display and options available?

1- Have CPU to drive a display - Select Display Only
For use if you have a powerfule nough host CPU to perfomm GUl rendering tasks and communicate through the SPl.

2- Have CPU, can't drive a display - Select Smart Display
Allows you to offload Gul renderingtasks to it's dedicated SW and communicate with your host CPU through simpler UART pre- predefined commands.

3- No CPU, need a full solution - Select DRAGONEYE" MCU Kit
For rapid development, theexpansion board features high-performance STM32 MCU, MIPI-DS/RGB interface and many connectivity options to interface with your host co-processor orsensors.

Knob Rotary Display Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Knob Rotary Display Applications
