19 Inch TFT LCD Display 1280×1024 LVDS High Brightness 1200nits LCD Display For Automotive

19 Inch Automotive Display Overview

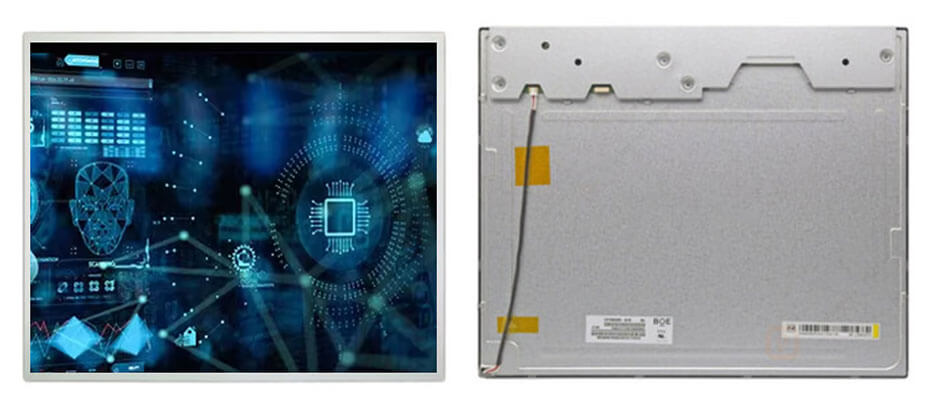

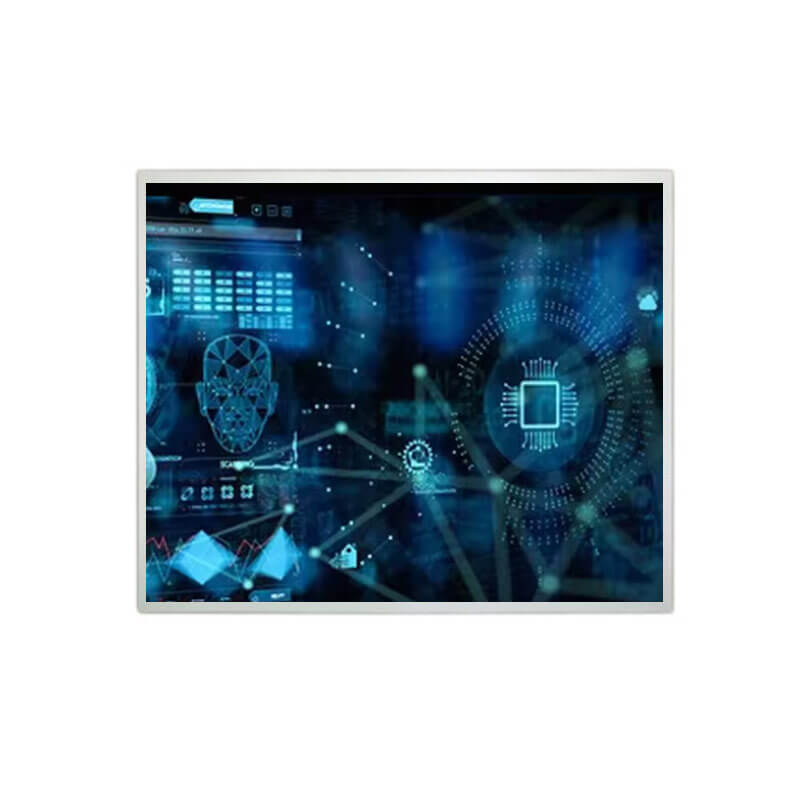

ET190SX01-RS is a 19-inch diagonal TFT-LCD display product with a transmissive display mode. ET190SX01-RS supports a resolution of 1280×1024 with a standard aspect ratio, delivering clear and stable image performance, and utilizes an LVDS interface for signal transmission. It features an active area of 374.784(W)×299.827(H) mm and an outline size of 396(W)×324(H) mm. The display provides a high brightness of 1200 cd/m², making it suitable for automotive and high ambient light environments, and offers wide viewing angles of 89/89/89/89 (L/R/U/D). ET190SX01-RS operates within a temperature range of -20 to 70°C and can be stored at -20 to 75°C. This model does not include a touch function.

More 19 Inch Automotive Display For Reference
ET190BA01-T (1920×320, LVDS, IPS, 1500nits, 0~50°C, 500×119.6mm)
ET190SX01-RS (1280×1024, LVDS, TN, 1200nits, -20~70°C, 396×324mm)
