19.5 Inch Stretched Bar Display Overview

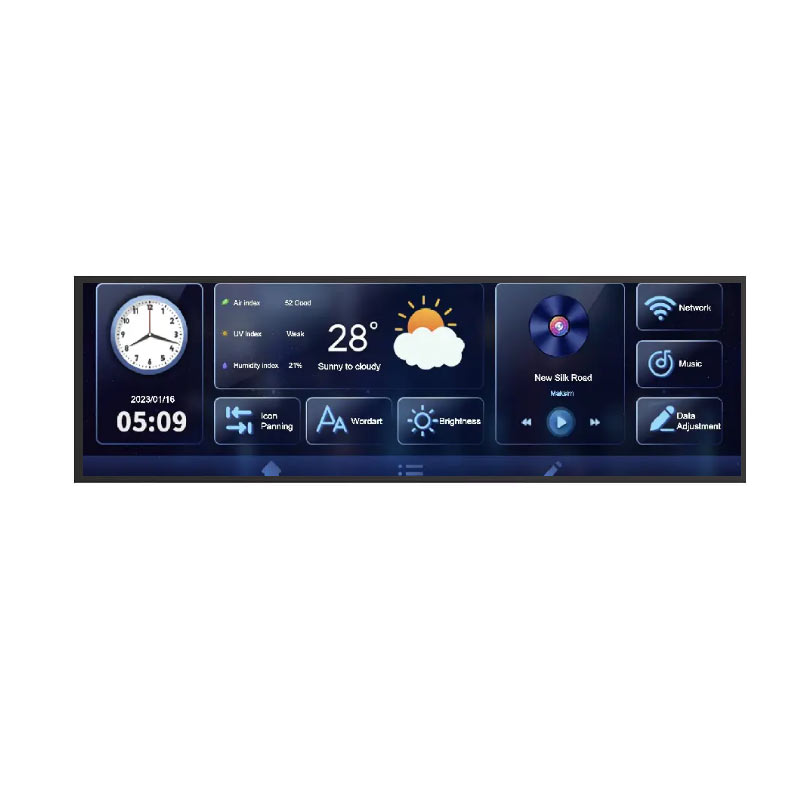

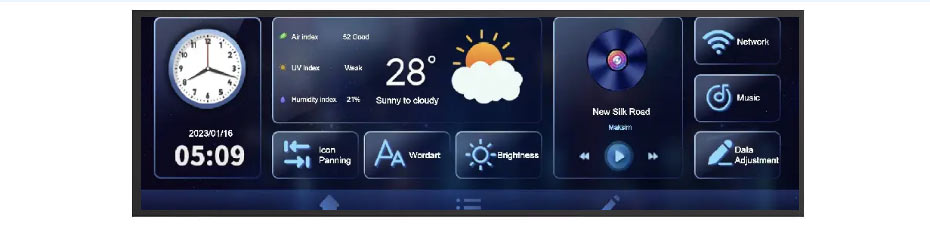

ET195BA01-RS is a 19.5-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 540 resolution, providing a high-brightness wide-format display ideal for horizontal information presentation and graphical applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 476.64 (W) × 136.41 (H) mm and an outline dimension of 497.4 (W) × 158.4 (H) mm, allowing integration into elongated, space-efficient system designs. ET195BA01-RS adopts an LVDS interface and delivers a minimum brightness of 1500 cd/m², ensuring excellent readability even in high ambient light conditions. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast across multiple viewing positions. The module is designed for reliable operation in wide temperature conditions, –30 to 85°C operating and –40 to 90°C storage ranges. This model does not support touch functionality and is ideal for applications such as industrial control panels, transportation displays, outdoor digital signage, and other high-brightness wide-format embedded display solutions.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
